Catalog

Search by vehicle

Category :

Transmission

Return

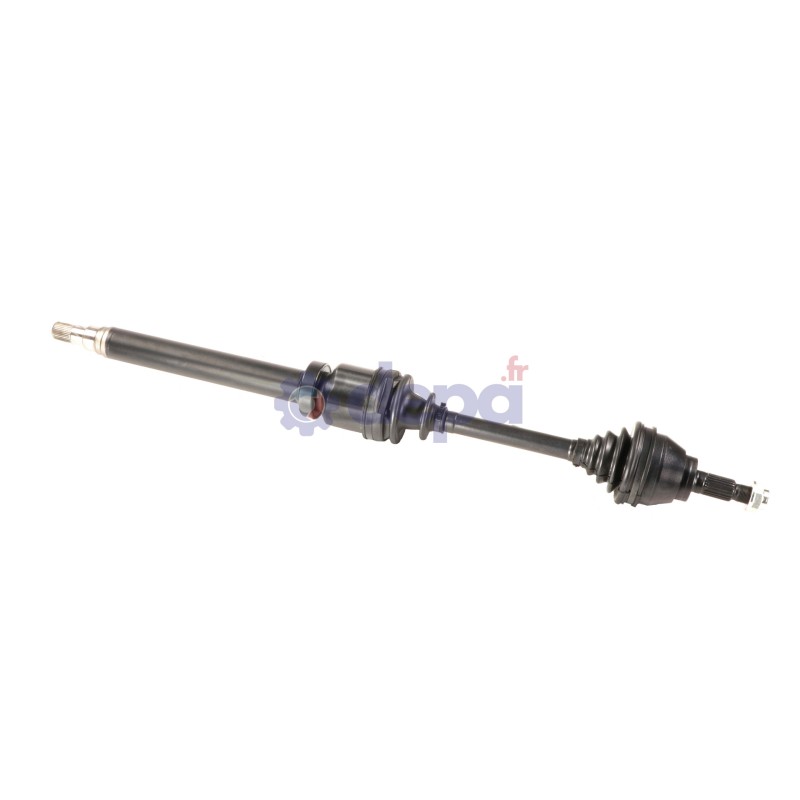

MINI II RIGHT-SIDE

Name: MINI II RIGHT-SIDE
Brand: Depa
SKU: 3441420
Price: 278.56 EUR
Availability: InStock

Ref : 3441420

Matching vehicles :

MINI II

Family :TR

Height : 20 mm

Compressed length : 920 mm

Length of the shaft (including bearing unit) : 400 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 28 mm

Housing diameter : 82 mm

Length of the shaft (including bearing unit) : 405 mm

Length of the gearbox output without seal seat : 52 mm

Number of external splines : 34

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 87 mm

Shoulder diameter : 54 mm

Nombre de cannelures extérieures : 26

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 75 mm

Inner diameter : 49 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 25 mm

Beads thickness : 18.5 mm

Length : 100 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 37 mm

Height : 27.5 mm

Number of splines : 32

CV joint	COTE ROUE	JMIN12
CV joint	COTE BOITE	PALCBMMIN12DT
Fixation	COTE ROUE	EC020
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6043
Bearing	COTE BOITE	RLT009
Tripod joint	COTE BOITE	TRIFO26

Equivalence to manufacturer references

MINI : 31602752248
MINI : 31602756274
MINI : 31602756340
MINI : 31604853484
MINI : 31607585382
MINI : 31607596060
MINI : 31607599564
MINI : 31607616142
MINI : 31608605466
MINI : 31608605470
