Catalog

Search by vehicle

Category :

Transmission

Return

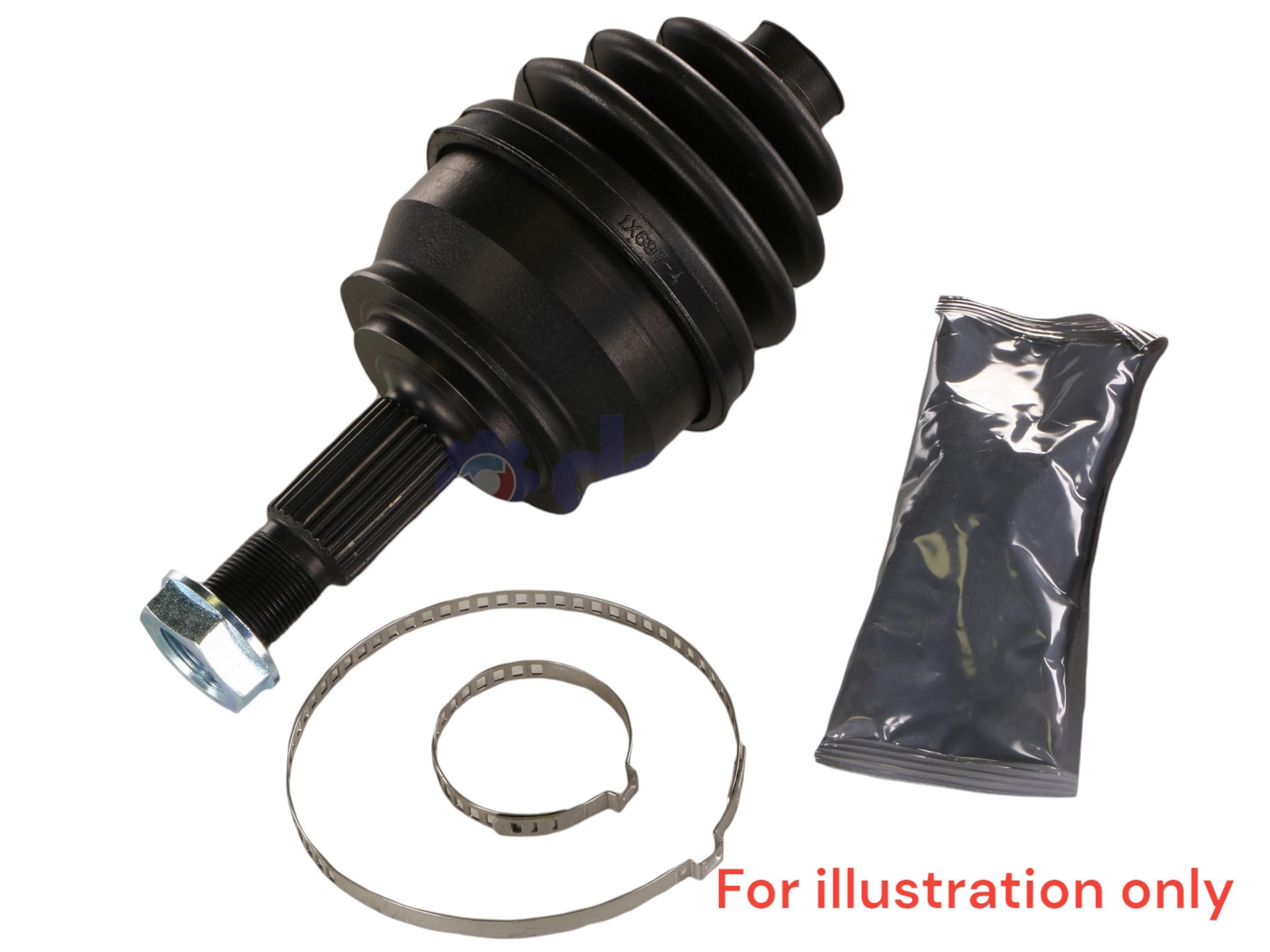

LAND ROVER AUTOMATIC TRANSMISSION FRONT LEFT-SIDE

Name: LAND ROVER AUTOMATIC TRANSMISSION FRONT LEFT-SIDE
Brand: Depa
SKU: 3461550
Price: 300.7 EUR
Availability: InStock

Ref : 3461550

Matching vehicles :

RANGE ROVER SPORT I - DISCOVERY III - DISCOVERY IV

Family :TR

Height : 26 mm

Compressed length : 637 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

COURONNE ABS COTE ROUE

Outer diameter : 90 mm

Inner diameter : 74 mm

Width : 9 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 44 mm

Outer spline diameter : 31.5 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 71 mm

Number of external splines : 29

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 31.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 72 mm

Nombre de cannelures extérieures : 29

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 25.5 mm

Beads thickness : 15 mm

Length : 92 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45 mm

Height : 22 mm

Number of splines : 26

CV joint	COTE ROUE	JLR15
CV joint	COTE BOITE	CBMLR15GT
Fixation	COTE ROUE	EC019
Sealing kit	COTE ROUE	5020
	COTE BOITE	6113
	COTE BOITE	6113
Tripod joint	COTE BOITE	TRIP27

Equivalence to manufacturer references

LAND ROVER : LR047295
LAND ROVER : LR072069
LAND ROVER : TDB500110
