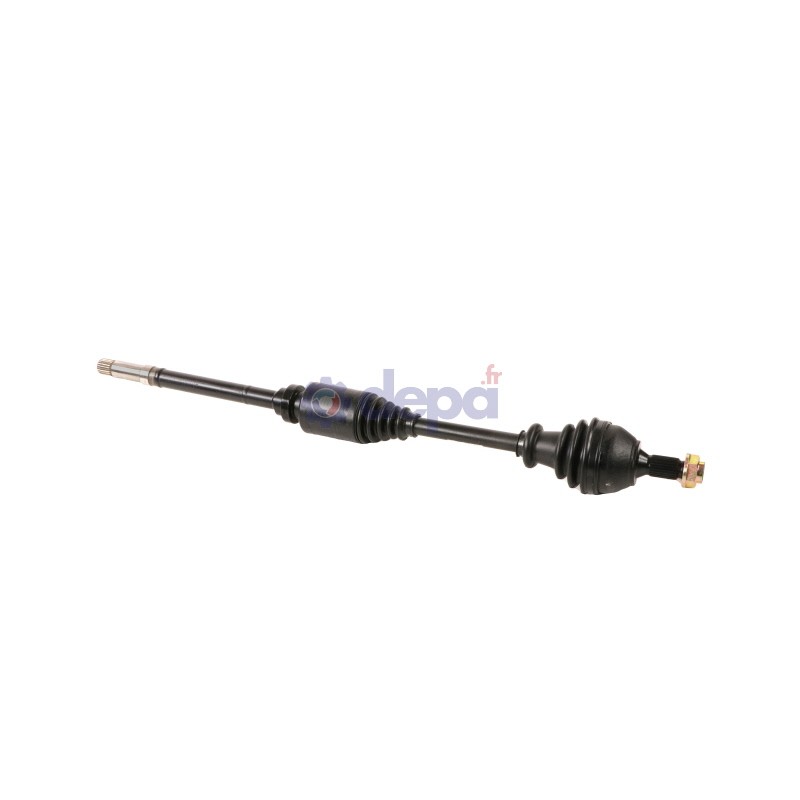

CITROEN XSARA 1.6 RIGHT-SIDE

Name: CITROEN XSARA 1.6 RIGHT-SIDE
Brand: Depa
SKU: 3062160
Price: 135.83 EUR
Availability: InStock

Ref : 3062160

Matching vehicles :

PARTNER - BERLINGO - XSARA

Family :TR

Height : 13.5 mm

Compressed length : 895 mm

Length of the shaft (including bearing unit) : 333 mm

ABS on the vehicle : No

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 24 mm

Housing diameter : 70 mm

Length of the shaft (including bearing unit) : 433 mm

Length of the gearbox output without seal seat : 75 mm

Number of external splines : 22

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 86 mm

Shoulder diameter : 57 mm

Nombre de cannelures extérieures : 25

ROULEMENT COTE BOITE

Outer diameter : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 20 mm

Length : 172 mm

Housing length : 87 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Height : 25 mm

Number of splines : 22

CV joint	COTE ROUE	JC631
CV joint	COTE BOITE	PALCBMC2160D
Sealing kit	COTE ROUE	T3064
	COTE ROUE	5010
	COTE BOITE	6109
		6013
		6013
Fixation	COTE ROUE	EC008
Fixation		EC007
Bearing	COTE BOITE	RLT017
Bearing		RLT017
Tripod joint	COTE BOITE	TRIP01

Equivalence to manufacturer references

CITROËN : 32732W
CITROËN : 32732X
CITROËN : 32734T
CITROËN : 32736G
