Catalog

Search by vehicle

Category :

Transmission

Return

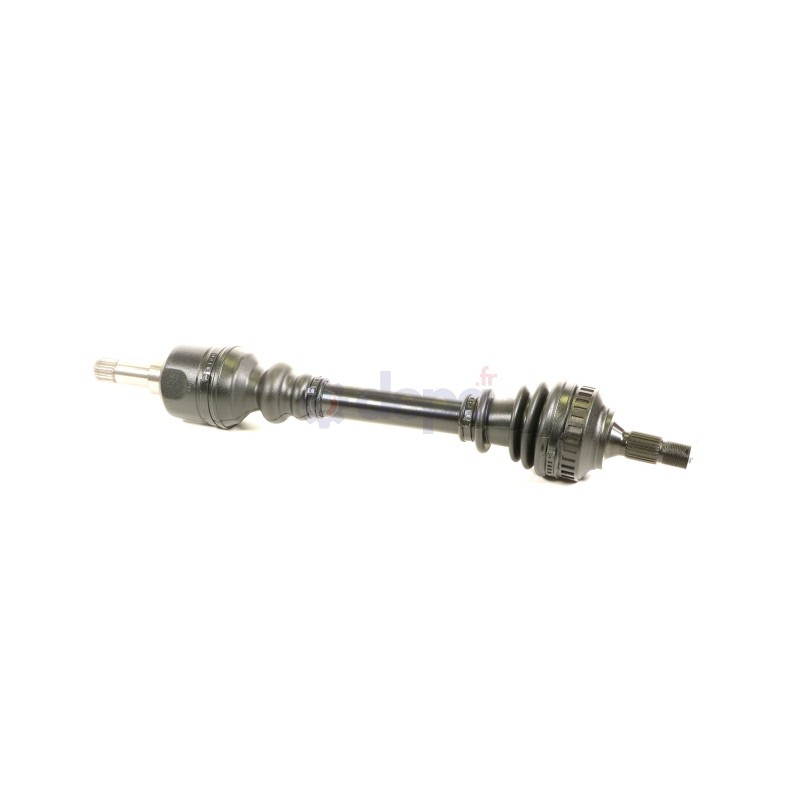

XSARA/BERLINGO/PARTNER WITH ABS LEFT-SIDE

Name: XSARA/BERLINGO/PARTNER WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3062259
Price: 149.38 EUR
Availability: InStock

Ref : 3062259

Matching vehicles :

PARTNER - BERLINGO - XSARA PICASSO - XSARA

Family :TR

Height : 13.5 mm

Non-compressed length : 620 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

COURONNE ABS COTE ROUE

Outer diameter : 90 mm

Inner diameter : 86 mm

Width : 18 mm

Number of teeth : 29

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26 mm

Housing diameter : 79 mm

Length of the gearbox output without seal seat : 69 mm

Number of external splines : 24

Number of splines on inner race : 34

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 90 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 25

Nombre de cannelures sur la noix : 34

Observations :

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76 mm

Diameter (little) : 34 mm

Length : 100 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 74 mm

Diamètre (petit) : 28 mm

Longueur : 115 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 34

Sealing kit	COTE ROUE	T3008
		T3005
		5014
		5053
	COTE BOITE	6106
		6034
		6065
CV joint	COTE ROUE	JC2248
CV joint	COTE BOITE	CBMC64G
Fixation	COTE ROUE	EC008
Tripod joint	COTE BOITE	TRIC43
ABS ring		COU045

Equivalence to manufacturer references

CITROËN : 3272FN
CITROËN : 3272KL
