Catalog

Search by vehicle

Category :

Transmission

Return

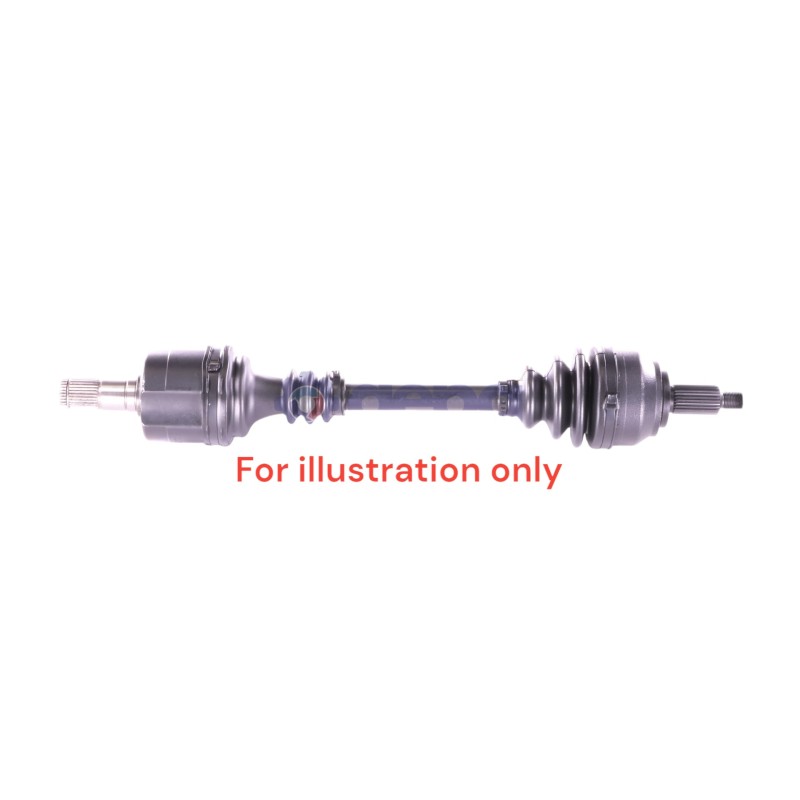

CITROEN C5 II/PEUGEOT 407 LEFT-SIDE

Name: CITROEN C5 II/PEUGEOT 407 LEFT-SIDE
Brand: Depa
SKU: 3182152
Price: 225 EUR
Availability: InStock

Ref : 3182152

Matching vehicles :

407 - C5 II

Family :TR

Height : 13.5 mm

Compressed length : 660 mm

Non-compressed length : 690 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 37

Number of splines on inner race : 39

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 96 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 28

Nombre de cannelures sur la noix : 39

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 77 mm

Diameter (little) : 29 mm

Beads thickness : 14.5 mm

Length : 101 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 92 mm

Diamètre (petit) : 25 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

Sealing kit	COTE ROUE	5008
	COTE ROUE	5020
	COTE BOITE	6115
	COTE BOITE	6112
CV joint	COTE ROUE	JC82
CV joint	COTE BOITE	CBMC82GT
Fixation	COTE ROUE	EC008
Tripod joint	COTE BOITE	TRIC44
Spring	COTE BOITE	REC44

Equivalence to manufacturer references

CITROËN : 3272SE
CITROËN : 3272SF
