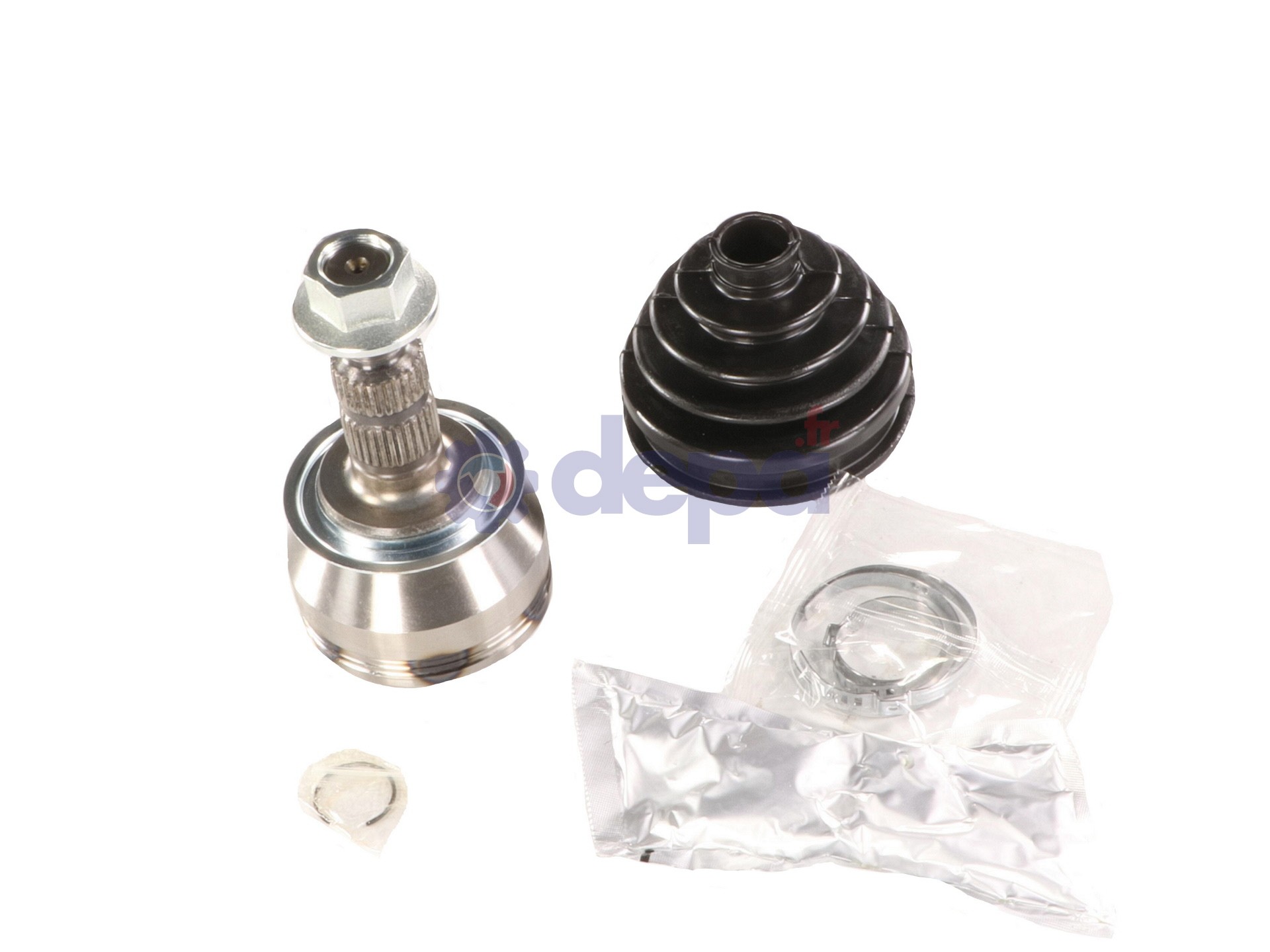

CHEVROLET ORLANDO RIGHT-SIDE

Name: CHEVROLET ORLANDO RIGHT-SIDE
Brand: Depa
SKU: 3715200
Price: 253.38 EUR
Availability: OutOfStock

Ref : 3715200

Matching vehicles :

ORLANDO

Family :TR

Height : 28 mm

Compressed length : 600 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 27.5 mm

Housing diameter : 79.5 mm

Number of internal splines : 34

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 32.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 58.5 mm

Number of external splines : 30

Number of splines on inner race : 34

Observations : Threading length 31mm Ø24mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76.5 mm

Diameter (little) : 25.5 mm

Beads thickness : 9 mm

Length : 89 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 47.3 mm

Height : 22 mm

Number of splines : 34

CV joint	COTE ROUE	JCHE01
CV joint	COTE BOITE	CBFCHE52DT
Fixation	COTE ROUE	EC012
Sealing kit	COTE ROUE	5026
Sealing kit	COTE BOITE	6194

Equivalence to manufacturer references

CHEVROLET : 13369711
