TOYOTA RAV4 I WITH ABS LEFT-SIDE

Name: TOYOTA RAV4 I WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3486057
Price: 241.38 EUR
Availability: InStock

Ref : 3486057

Matching vehicles :

RAV4 I

Family :TR

Height : 17 mm

Compressed length : 575 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flat

COURONNE ABS COTE ROUE

Outer diameter : 89 mm

Inner diameter : 80 mm

Width : 6 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 44 mm

Outer spline diameter : 25 mm

Housing diameter : 74 mm

Length of the gearbox output without seal seat : 49 mm

Number of external splines : 23

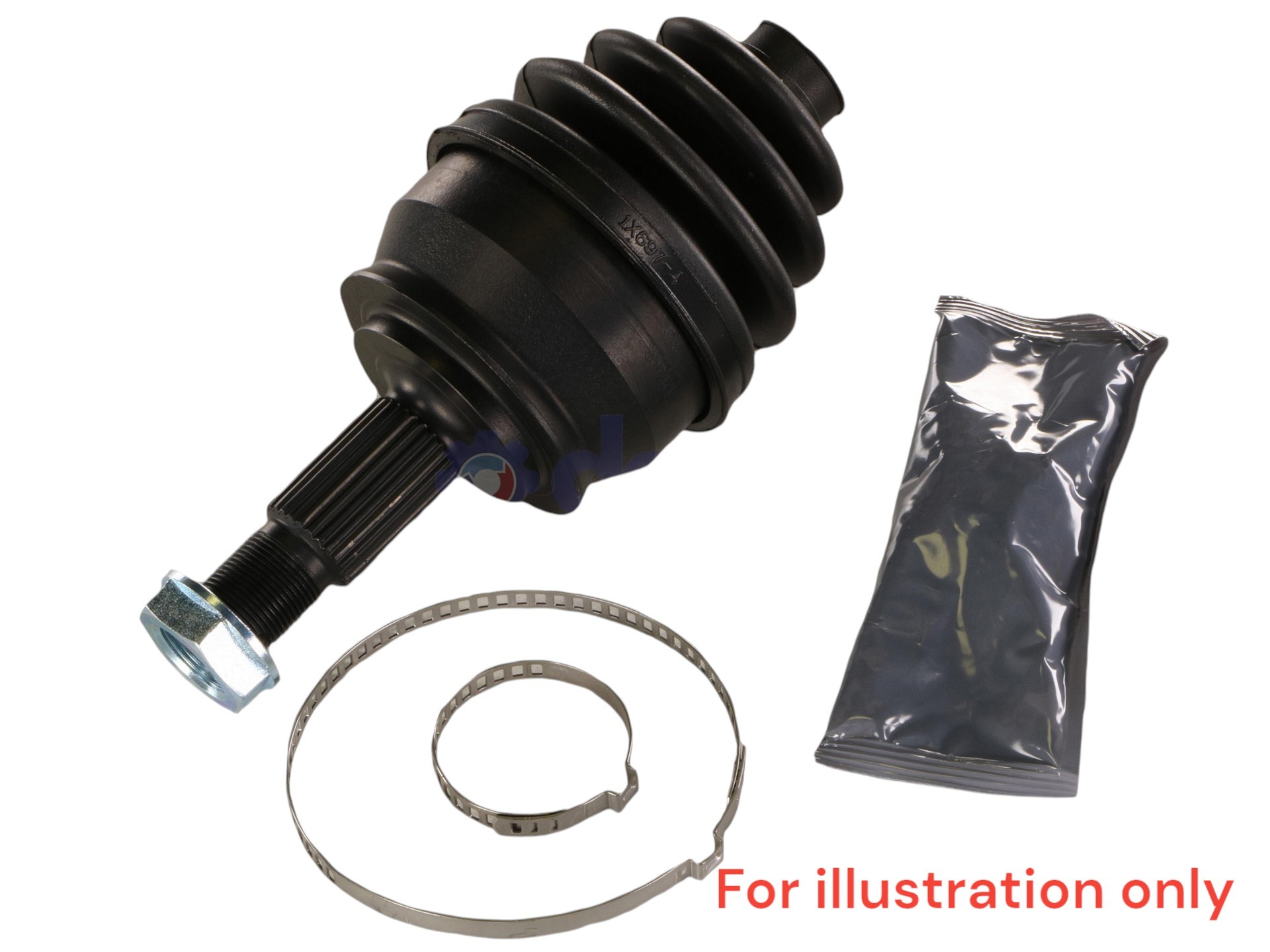

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 84 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 26

Number of splines on inner race : 24

Type and position (snap ring/circlip) : Internal snap ring

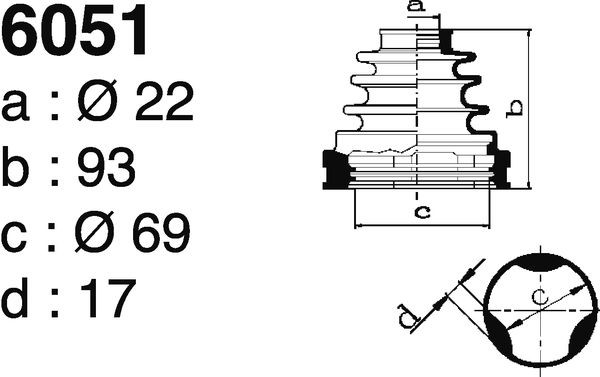

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 22 mm

Beads thickness : 17 mm

Length : 93 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 30 mm

Number of splines : 23

Fixation	COTE ROUE	EC022
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6051
CV joint	COTE ROUE	JT3147
CV joint	COTE BOITE	CBMT6050GT
ABS ring		COU044

Equivalence to manufacturer references

TOYOTA : 4342042013
