Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

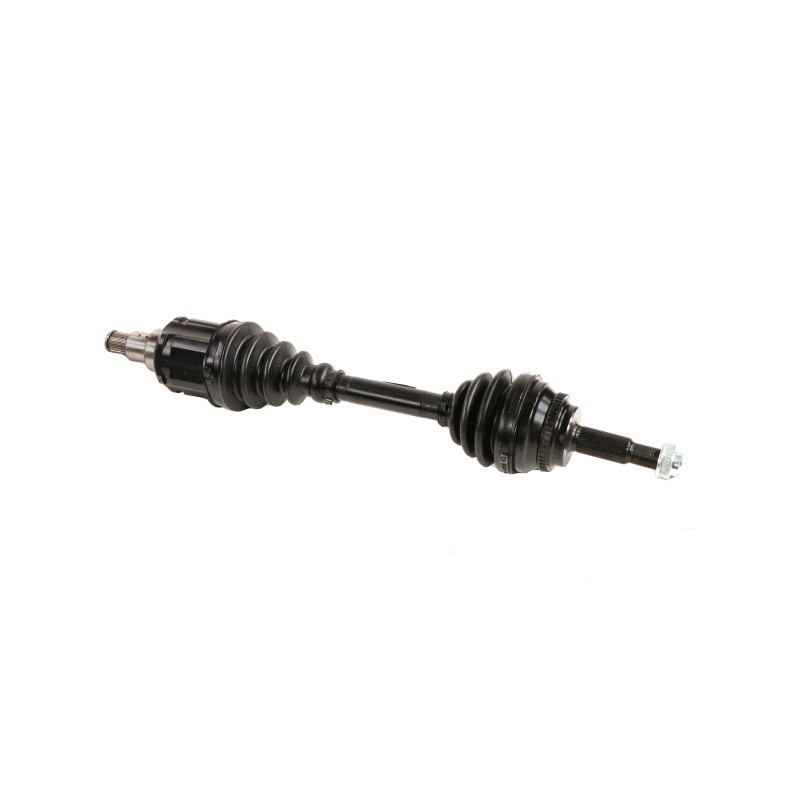

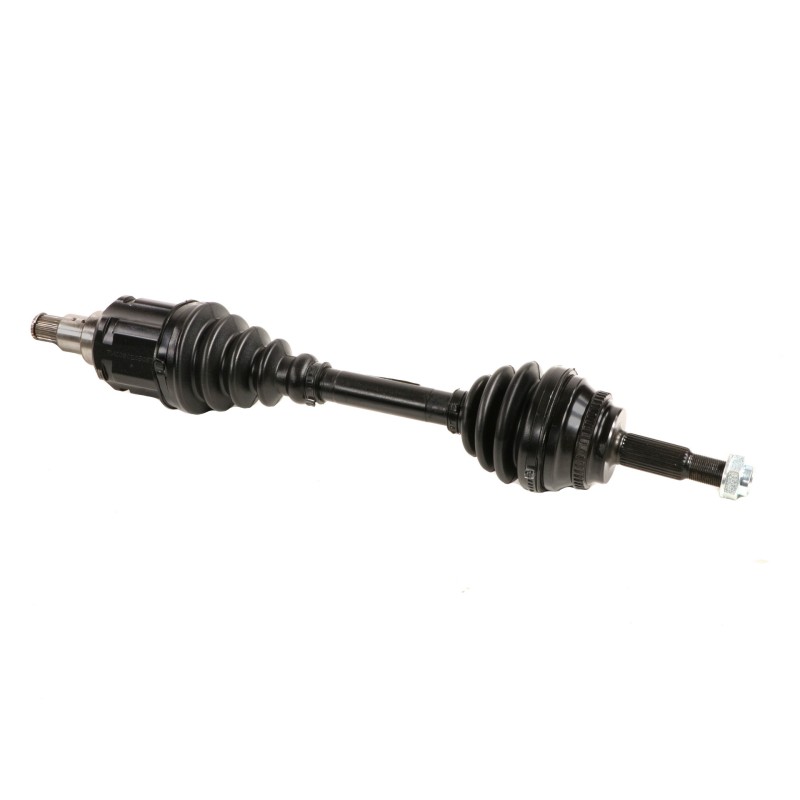

TOYOTA RAV4 II WITH ABS LEFT-SIDE

Name: TOYOTA RAV4 II WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3486250
Price: 258.42 EUR
Availability: InStock

Ref : 3486250

Matching vehicles :

RAV4 II

Family :TR

Height : 20 mm

Compressed length : 585 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

COURONNE ABS COTE ROUE

Outer diameter : 80 mm

Inner diameter : 70 mm

Width : 9 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 44 mm

Outer spline diameter : 25 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 49 mm

Number of external splines : 23

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 95 mm

Shoulder diameter : 63 mm

Nombre de cannelures extérieures : 26

Number of splines on inner race : 27

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 22 mm

Beads thickness : 9.5 mm

Length : 116 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 27.5 mm

Number of splines : 27

KITS ETANCHEITE TR neuf	COTE ROUE	5020
	COTE ROUE	5020
	COTE BOITE	6059
JOINT HOMO Echange	COTE ROUE	JT62
	COTE ROUE	JT62
	COTE BOITE	CBMT62GT
FIXATION	COTE ROUE	EC020
FIXATION		EC020
COURONNE ABS		COU040

Equivalence to manufacturer references

TOYOTA : 4342042050
TOYOTA : 4342042140
TOYOTA : 4342042150
