Search by vehicle

Category :

TRANSMISSION échange standard

Return

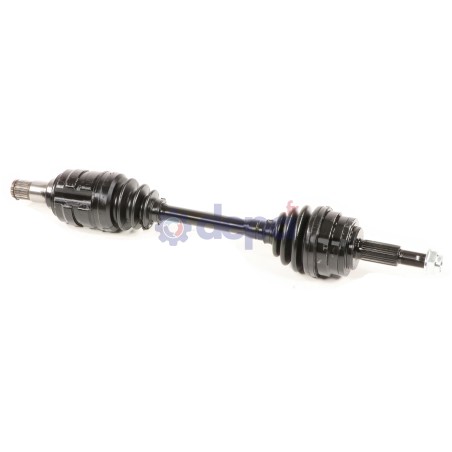

TOYOTA AURIS LEFT-SIDE

Name: TOYOTA AURIS LEFT-SIDE
Brand: Depa
SKU: 3487750
Price: 240.26 EUR
Availability: InStock

Ref : 3487750

Matching vehicles :

AURIS I

Family :TR

Height : 20 mm

Compressed length : 615 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 50 mm

Outer spline diameter : 30.5 mm

Housing diameter : 80 mm

Length of the gearbox output without seal seat : 68 mm

Number of external splines : 24

Number of splines on inner race : 33

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 30 mm

Diamètre du bol : 95 mm

Shoulder diameter : 61 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 33

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76.5 mm

Diameter (little) : 25.5 mm

Beads thickness : 9 mm

Length : 89 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 42 mm

Height : 26.5 mm

Number of splines : 33

KITS ETANCHEITE TR neuf	COTE ROUE	5020
KITS ETANCHEITE TR neuf	COTE BOITE	6194
FIXATION	COTE ROUE	EC020
JOINT HOMO Echange	COTE ROUE	JT77
JOINT HOMO Echange	COTE BOITE	CBMT94GT

Equivalence to manufacturer references

TOYOTA : 4342002630
TOYOTA : 4342002631
