Catalog

Search by vehicle

Category :

Transmission

Return

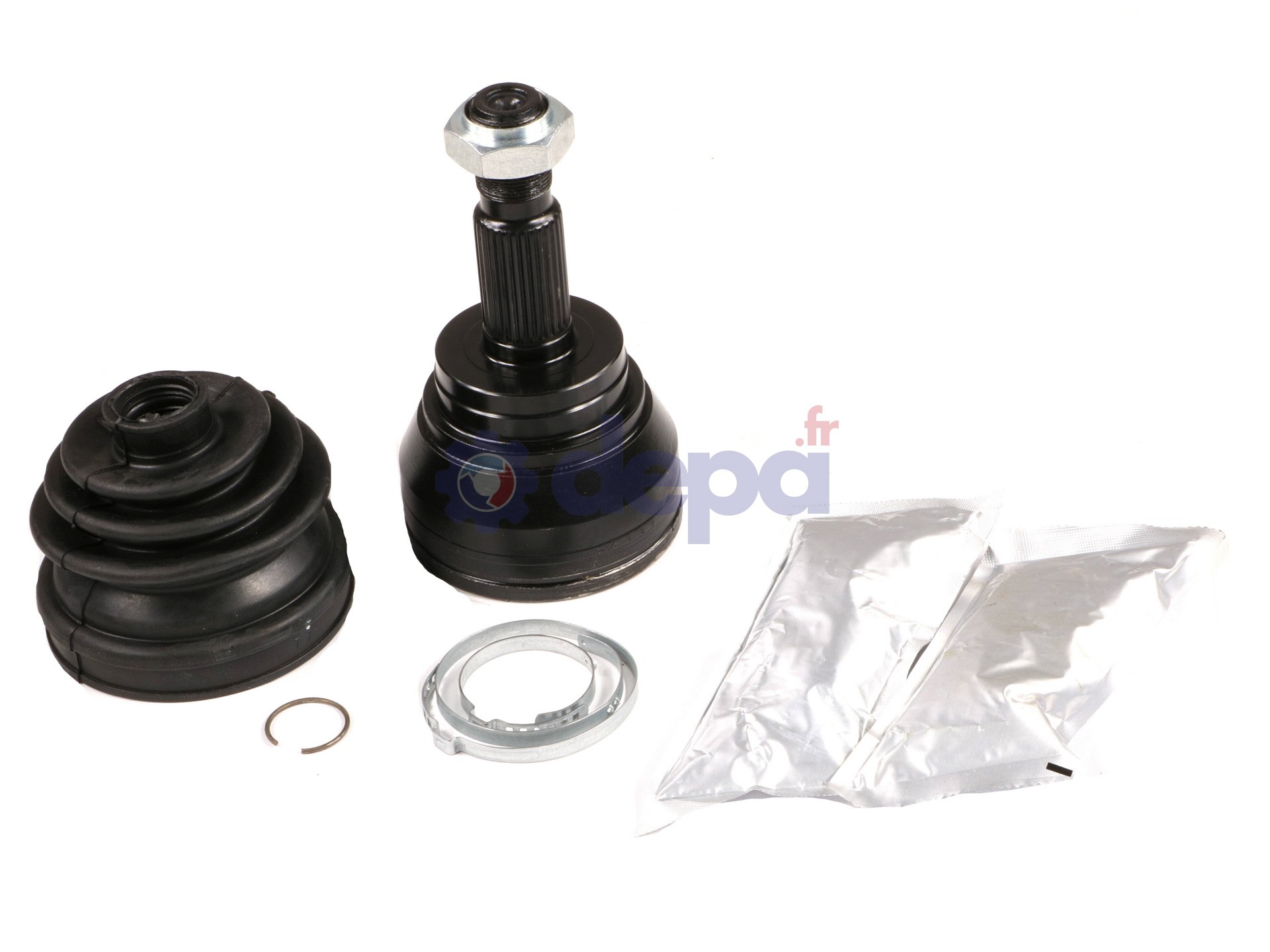

TOYOTA LAND CRUISER IV FRONT

Name: TOYOTA LAND CRUISER IV FRONT
Brand: Depa
SKU: 3488100
Price: 290.26 EUR
Availability: InStock

Ref : 3488100

Matching vehicles :

LAND CRUISER IV J120 - FJ CRUISER

Family :TR

Height : 17 mm

Compressed length : 645 mm

ABS on the vehicle : Yes

Thread pitch type : 28X150

Nut type : To strike

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 47 mm

Outer spline diameter : 32 mm

Housing diameter : 83 mm

Length of the gearbox output without seal seat : 76 mm

Number of external splines : 30

Number of splines on inner race : 30

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 32.5 mm

Diamètre du bol : 107 mm

Shoulder diameter : 70 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 30

SOUFFLET COTE BOITE

Diameter (big) : 82 mm

Diameter (little) : 29 mm

Beads thickness : 16 mm

Length : 95 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 48 mm

Height : 24 mm

Number of splines : 30

Fixation	COTE ROUE	EC009
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6120
CV joint	COTE ROUE	JT81
Tripod joint	COTE BOITE	TRIT81

Equivalence to manufacturer references

LEXUS : 4343060062
TOYOTA : 4343060060
TOYOTA : 4343060061
TOYOTA : 4343060062
