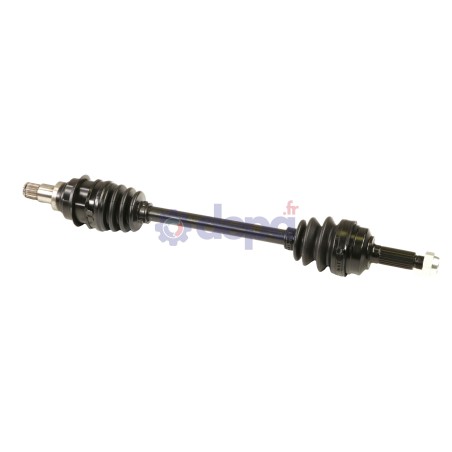

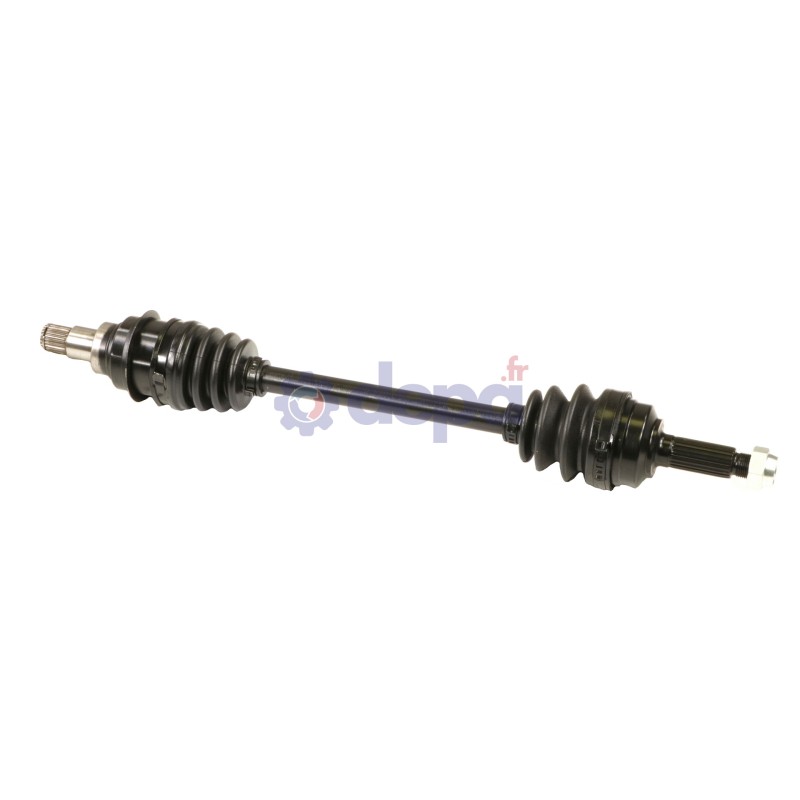

DAIHATSU TREVIS/CUORE AUTOMATIC TRANSMISSION LEFT-SIDE

Name: DAIHATSU TREVIS/CUORE AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3500750
Price: 251.33 EUR
Availability: OutOfStock

Ref : 3500750

Matching vehicles :

TREVIS - CUORE II

Family :TR

Height : 17 mm

Compressed length : 586 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : To strike

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 45 mm

Outer spline diameter : 24 mm

Housing diameter : 59 mm

Length of the gearbox output without seal seat : 51 mm

Number of external splines : 23

Number of splines on inner race : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 71 mm

Shoulder diameter : 47 mm

Nombre de cannelures extérieures : 24

Nombre de cannelures sur la noix : 26

Observations : Threading 20/150/Threading length 18mm/Threading Ø20mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 55 mm

Diameter (little) : 18 mm

Beads thickness : 11.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 73 mm

Diamètre (petit) : 19 mm

Longueur : 82 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 29.7 mm

Height : 21 mm

Number of splines : 26

Sealing kit	COTE ROUE	5011
Sealing kit	COTE BOITE	6053
Fixation	COTE ROUE	EC004
CV joint	COTE ROUE	JSU80
CV joint	COTE BOITE	CBMDAI07T
