Category :

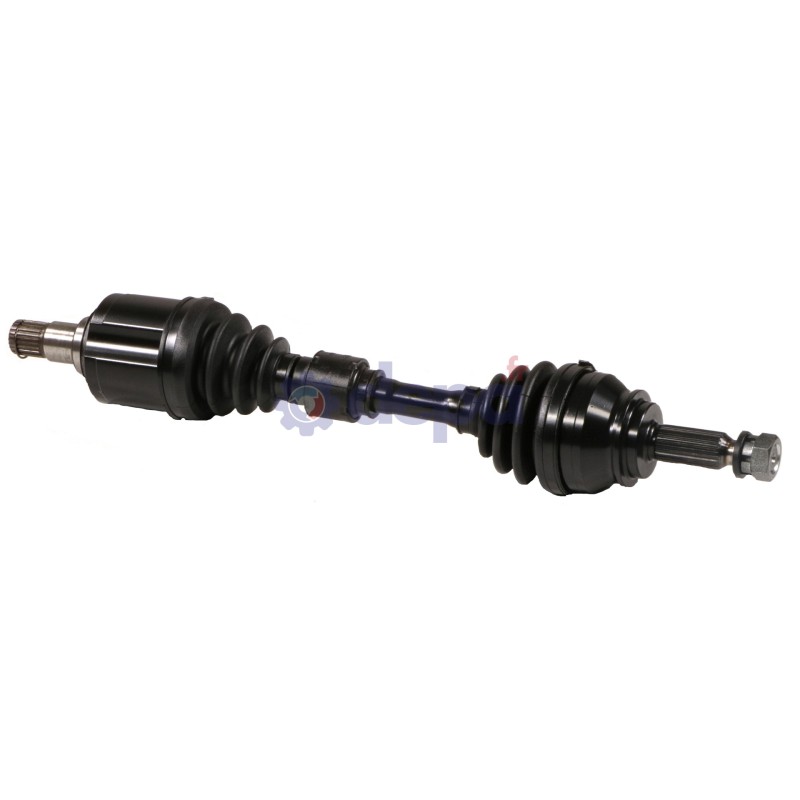

Transmission
Ref : 3520950
Matching vehicles :
ASX - OUTLANDER IIIFamily :TR
Height : 21 mm
Compressed length : 631 mm
ABS on the vehicle : Yes
Thread pitch type : 22X150
Nut type : Crown
JOINT HOMOCINETIQUE COTE ROUE
Outer spline diameter : 29 mm
Housing diameter : 95 mm
Shoulder diameter : 60 mm
Number of external splines : 28
Number of splines on inner race : 37
Observations : Threading Ø22mm
Type and position (snap ring/circlip) : Internal snap ring
SOUFFLET COTE ROUE
Diameter (big) : 88 mm
Diameter (little) : 24 mm
Length : 90 mm
Number of grooves : 1
Type of material : Neoprene
| Sealing kit | COTE ROUE | T3075 |
|
| 5026 |
|
||
| 5020 |
|
||
| CV joint | COTE ROUE | JP36 |
|
| Fixation | COTE ROUE | EC042 |
|
Equivalence to manufacturer references
MITSUBISHI : 3815A497
