Catalog

Search by vehicle

Category :

Transmission

Return

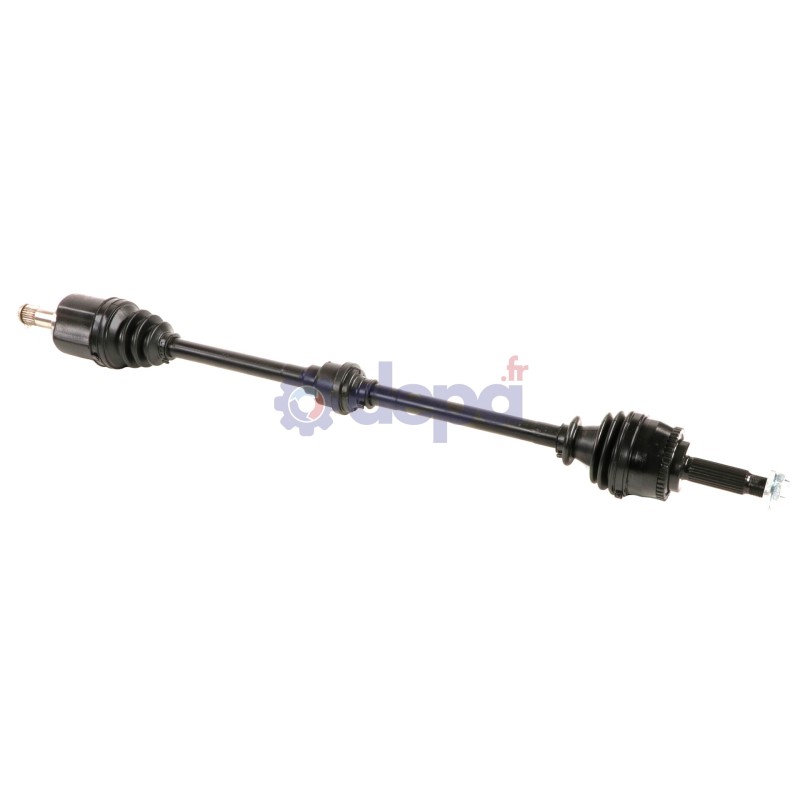

MITSUBISHI SPACE START RIGHT-SIDE

Name: MITSUBISHI SPACE START RIGHT-SIDE
Brand: Depa
SKU: 3522100
Price: 215.28 EUR
Availability: OutOfStock

Ref : 3522100

Matching vehicles :

SPACE START

Family :TR

Height : 15 mm

Compressed length : 935 mm

ABS on the vehicle : No

Thread pitch type : 22X150

Nut type : Crown

COURONNE ABS COTE ROUE

Outer diameter : 78 mm

Inner diameter : 66 mm

Width : 8 mm

Number of teeth : 43

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 41 mm

Outer spline diameter : 26 mm

Housing diameter : 70 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 25

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 26 mm

Diamètre du bol : 82 mm

Shoulder diameter : 54 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 23

Observations : Threading length 28mm Ø22mm/Spline length on shoulder 61mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 21 mm

Beads thickness : 15 mm

Length : 86 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 34 mm

Height : 26.5 mm

Number of splines : 23

Fixation	COTE ROUE	EC015
Fixation		EC042
CV joint	COTE ROUE	JMI21
CV joint	COTE BOITE	CBMMI21T
Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6061
Tripod joint	COTE BOITE	TRIF55
ABS ring		COU078

Equivalence to manufacturer references

MITSUBISHI : MR910296
