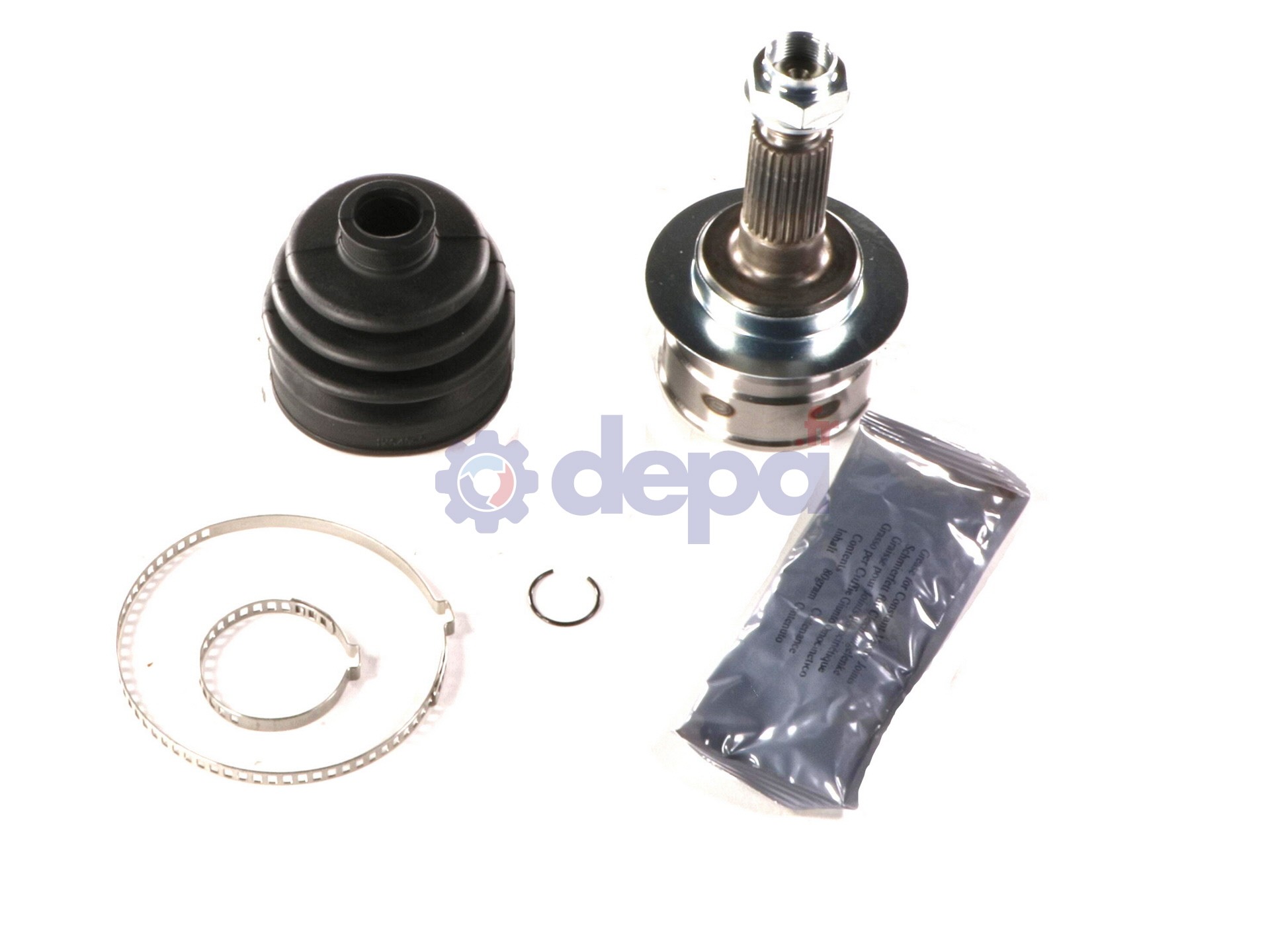

SUZUKI SX4 S-CROSS II/VITARA II RIGHT-SIDE

Name: SUZUKI SX4 S-CROSS II/VITARA II RIGHT-SIDE
Brand: Depa
SKU: 3437900
Price: 237.84 EUR
Availability: InStock

Ref : 3437900

Matching vehicles :

VITARA II - SX4 S-CROSS II

Family :TR

Height : 20 mm

Compressed length : 957 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 38 mm

Outer spline diameter : 29 mm

Housing diameter : 64 mm

Length of the gearbox output without seal seat : 57 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29 mm

Diamètre du bol : 72 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 29

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33.1 mm

Outer diameter : 58 mm

Height : 23 mm

Number of splines : 29

Sealing kit	COTE ROUE	5002
Sealing kit	COTE BOITE	6192
Fixation	COTE ROUE	EC020
CV joint	COTE ROUE	JS65
CV joint	COTE BOITE	CBMS81DT

Equivalence to manufacturer references

SUZUKI : 44101-61M00
SUZUKI : 44101-61M00-000
