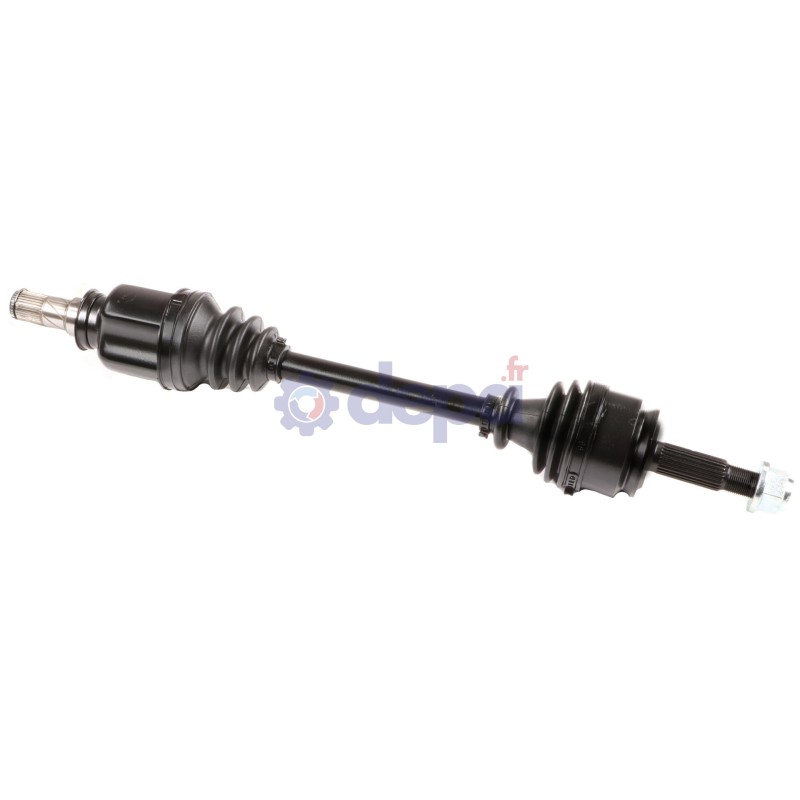

MITSUBISHI LEFT-SIDE

Name: MITSUBISHI LEFT-SIDE
Brand: Depa
SKU: 3526150
Price: 227.51 EUR
Availability: OutOfStock

Ref : 3526150

Matching vehicles :

COLT 6

Family :TR

Height : 25 mm

Compressed length : 622 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 27 mm

Housing diameter : 68 mm

Length of the gearbox output without seal seat : 57 mm

Number of external splines : 33

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 26 mm

Diamètre du bol : 75 mm

Shoulder diameter : 58 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 21

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 64 mm

Diameter (little) : 19 mm

Beads thickness : 14 mm

Length : 88 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 34 mm

Height : 26.5 mm

Number of splines : 23

Fixation	COTE ROUE	EC011
CV joint	COTE ROUE	JMI61
CV joint	COTE BOITE	CBMMI61GT
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6125
Tripod joint	COTE BOITE	TRIF55

Equivalence to manufacturer references

MITSUBISHI : 3815A009
