Equivalence to manufacturer references

SEAT : 2Q0407271BQ
SEAT : 2Q0407451PX

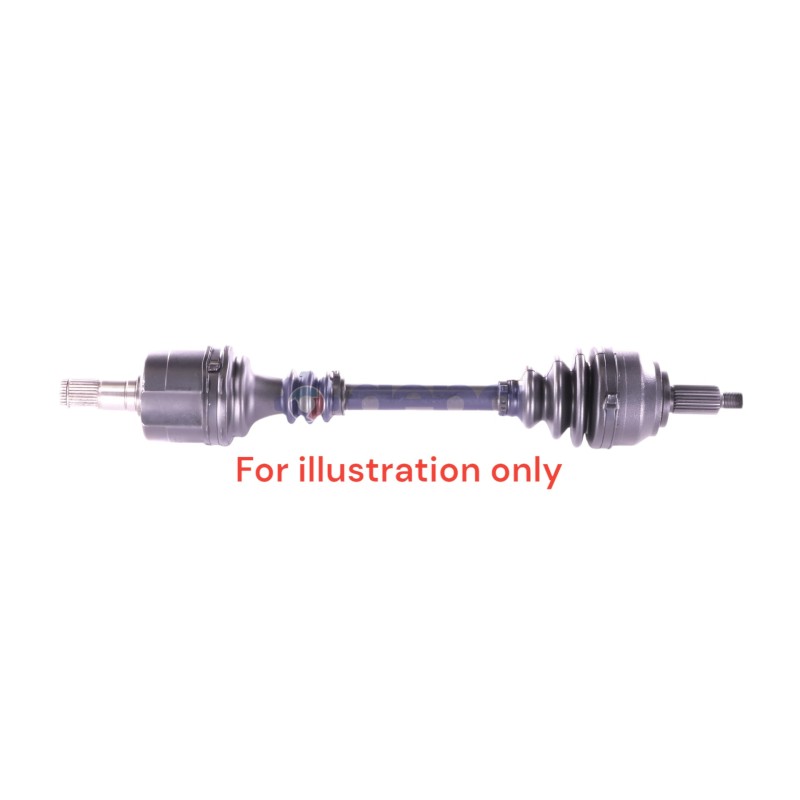

SEAT ARONA AUTOMATIC TRANSMISSION LEFT-SIDE

Name: SEAT ARONA AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3531670
Price: 392 EUR
Availability: OutOfStock

Ref : 3531670

Matching vehicles :

TAIGO (CS1) - KAMIQ - ARONA -

Family :TR

Collapsed length : 510 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 22 mm

Thread pitch type : 16X150

Nut type : Wing

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Housing diameter : 71 mm

Outer diameter (gearbox side) : 71 mm

Outer diameter (boot side) : 110 mm

Flange thickness : 90 mm

Number of splines on inner race : 30

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 28.6 mm

Diamètre du bol : 100 mm

Shoulder diameter : 52.2 mm

Number of external splines : 36

Nombre de cannelures sur la noix : 27

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 23 mm

Beads thickness : 11 mm

Length : 85 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41.5 mm

Height : 21 mm

Number of splines : 32

Sealing kit	COTE ROUE	T3048
	COTE ROUE	5026
	COTE BOITE	6084
Fixation	COTE ROUE	EC016
CV joint	COTE ROUE	JSE27
CV joint	COTE BOITE	CBEW37T
Tripod joint	COTE BOITE	TRIW19
