Catalog

Search by vehicle

Category :

Transmission

Return

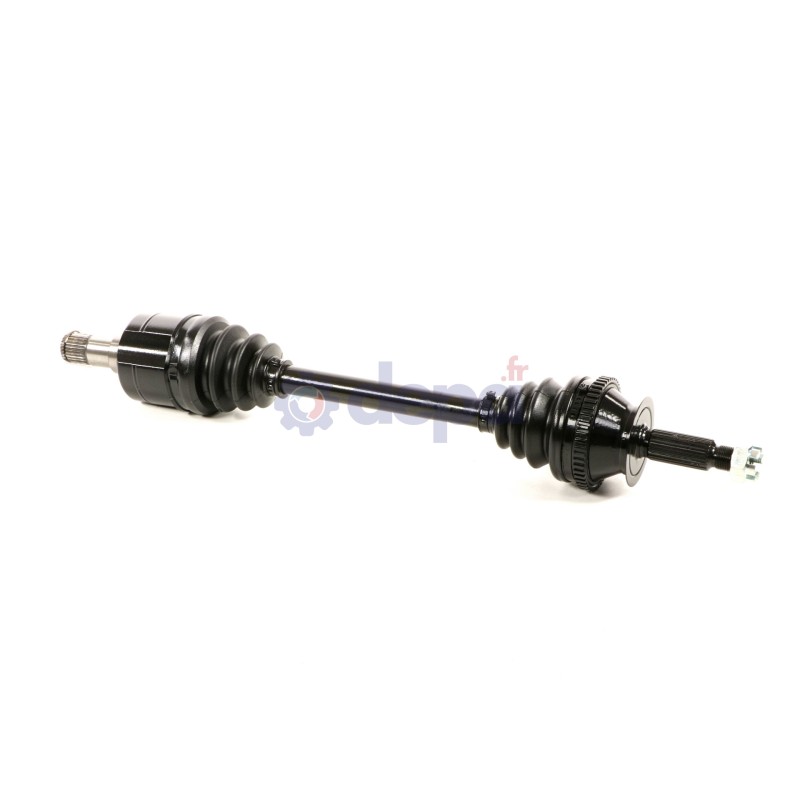

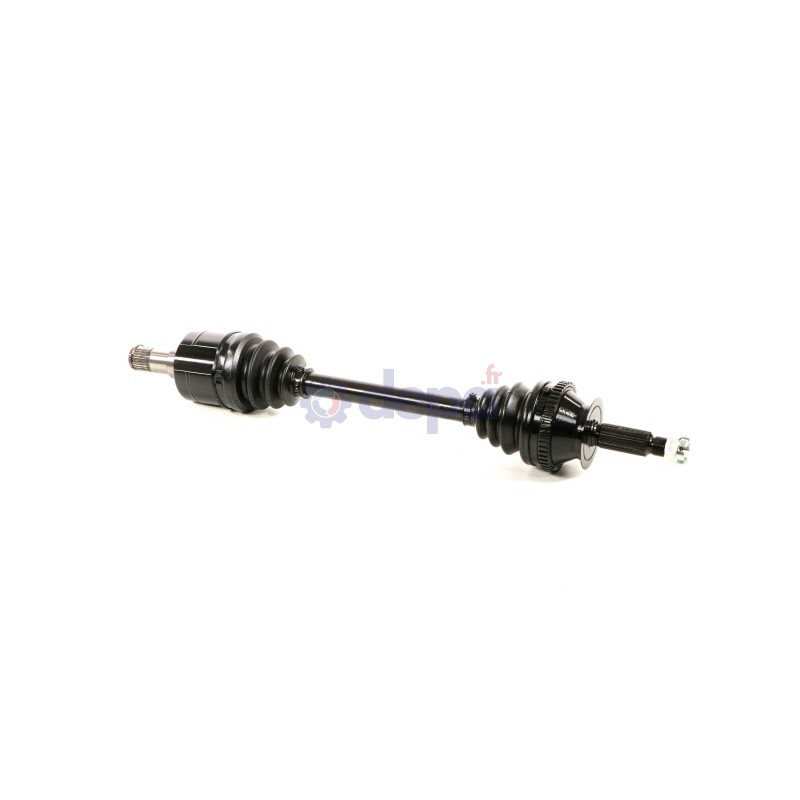

HYUNDAI SANTA FE FRONT WITH ABS LEFT-SIDE

Name: HYUNDAI SANTA FE FRONT WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3543750
Price: 354.34 EUR
Availability: InStock

Ref : 3543750

Matching vehicles :

SANTA FE I

Family :TR

Height : 15 mm

Compressed length : 662 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Crown

COURONNE ABS COTE ROUE

Outer diameter : 101 mm

Inner diameter : 85 mm

Width : 10 mm

Number of teeth : 52

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 41 mm

Outer spline diameter : 30.5 mm

Housing diameter : 82 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28 mm

Diamètre du bol : 86 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 25

Observations : Threading length 23mm Ø22mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45.65 mm

Diamètre extérieur : 3 mm

Height : 28 mm

Number of splines : 35

CV joint	COTE ROUE	JHY32
CV joint	COTE BOITE	CBMHY32GT
Fixation	COTE ROUE	EC015
Fixation		EC042
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6182
ABS ring		COU120

Equivalence to manufacturer references

HYUNDAI : 4950026810
