Catalog

Search by vehicle

Category :

Transmission

Return

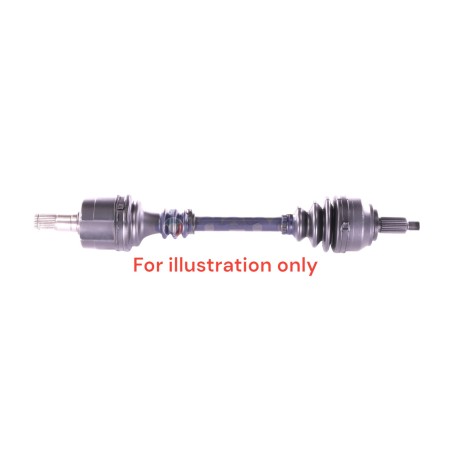

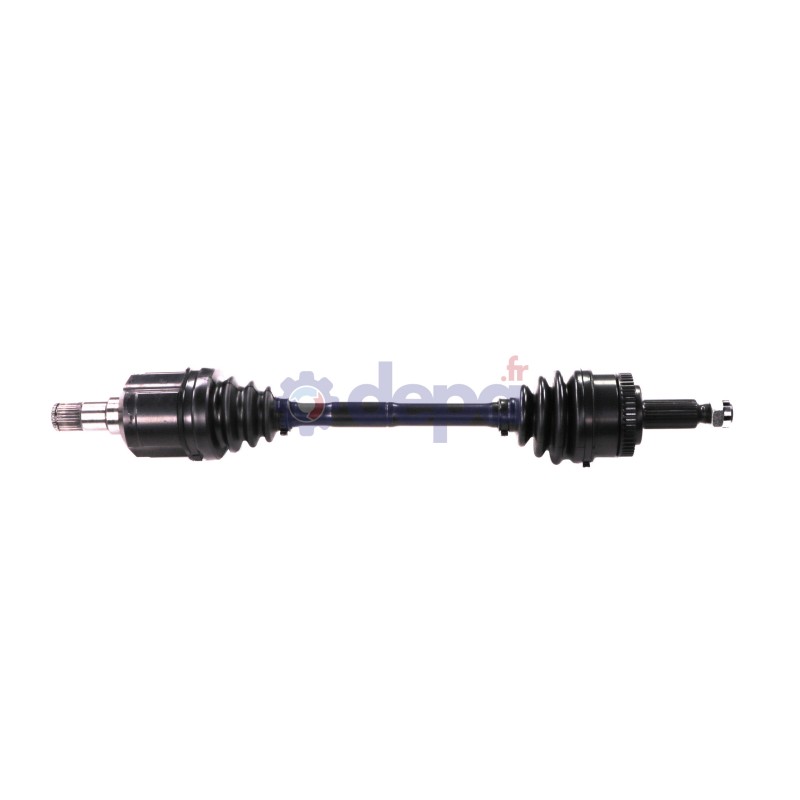

HYUNDAI IX 35 FRONT LEFT-SIDE

Name: HYUNDAI IX 35 FRONT LEFT-SIDE
Brand: Depa
SKU: 3544202
Price: 371 EUR
Availability: OutOfStock

Ref : 3544202

Matching vehicles :

SPORTAGE III - SPORTAGE III (SL) - IX35

Family :TR

Height : 21 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Crown

COURONNE ABS COTE ROUE

Outer diameter : 87 mm

Inner diameter : 72 mm

Width : 15 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 41 mm

Outer spline diameter : 30.5 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 31 mm

Housing diameter : 88 mm

Shoulder diameter : 64 mm

Nombre de cannelures extérieures : 30

Number of splines on inner race : 25

Observations : Threading length 27mm Ø22mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76.5 mm

Diameter (little) : 25.5 mm

Beads thickness : 9 mm

Length : 89 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45 mm

Diamètre extérieur : 72.5 mm

Height : 29 mm

Number of splines : 25

Fixation	COTE ROUE	EC042
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6194
CV joint	COTE ROUE	JK66
CV joint	COTE BOITE	CBMHY42GT

Equivalence to manufacturer references

HYUNDAI : 495002Y110
KIA : 495002Y110SJ
