Category :
Transmission
Ref : 3547000
Matching vehicles :
ATOSFamily :TR
Compressed length : 810 mm
ABS on the vehicle : No

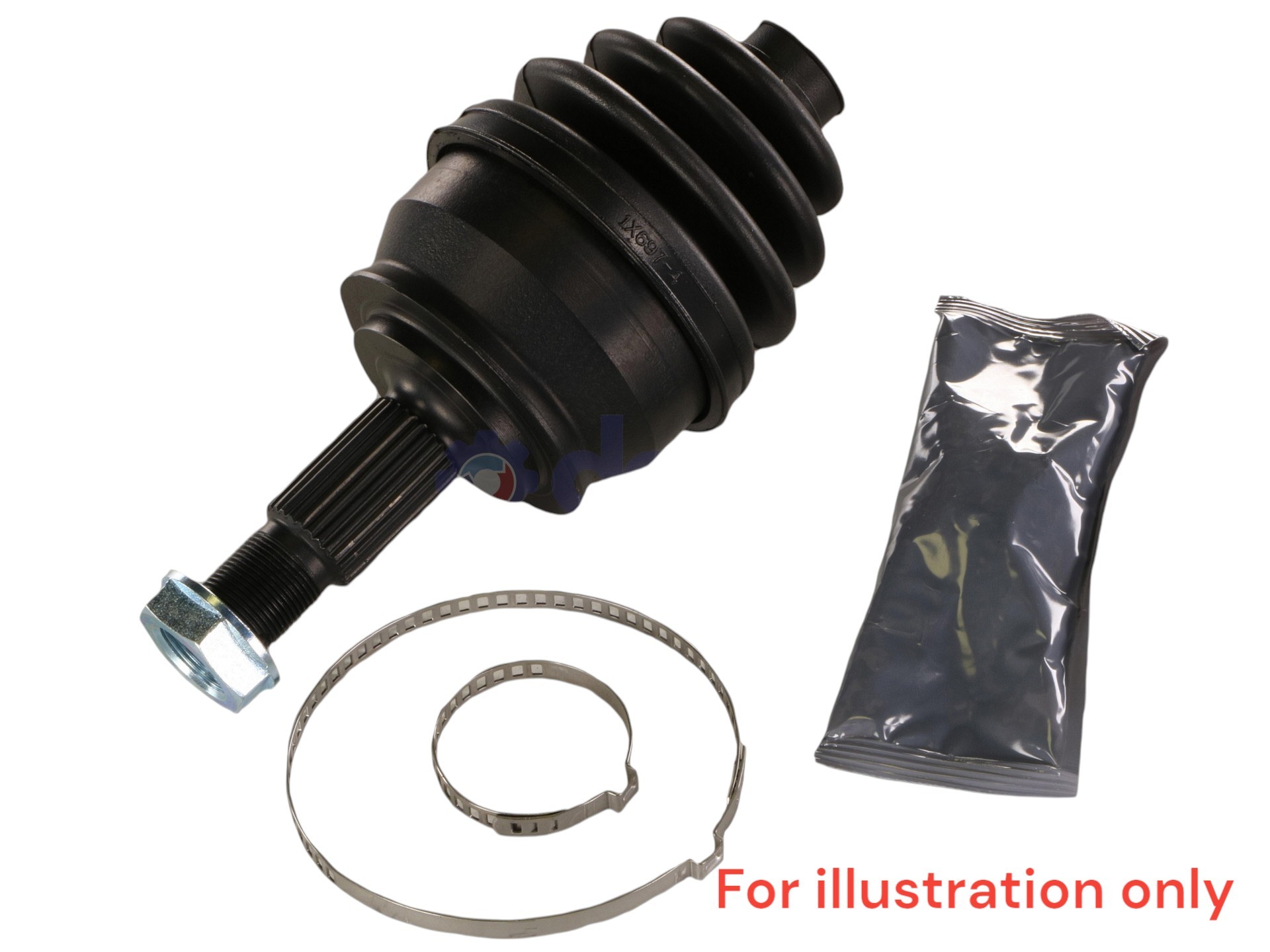

JOINT HOMOCINETIQUE COTE ROUE
Outer spline diameter : 26 mm
Housing diameter : 72 mm
Shoulder diameter : 50 mm
Number of external splines : 25
Number of splines on inner race : 19
Type and position (snap ring/circlip) : Centered snap ring
SOUFFLET COTE BOITE
Diameter (big) : 66 mm
Diameter (little) : 18 mm
Length : 83 mm
Number of grooves : 2
Type of material : Neoprene
SOUFFLET COTE ROUE
Diamètre (grand) : 66 mm
Diamètre (petit) : 18 mm
Longueur : 83 mm
Nombre de gorges : 2
Type de matière : NÉOPRÈNE
| CV joint | COTE ROUE | JHY70 |
|
| JHY70 |
|
||
| Sealing kit | COTE ROUE | 5037 |
|
| 5037 |
|
||
| COTE BOITE | 5037 |
|
|
| 5037 |
|
||
| Fixation | EC042 |
|
Equivalence to manufacturer references
HYUNDAI : 4950802A00
