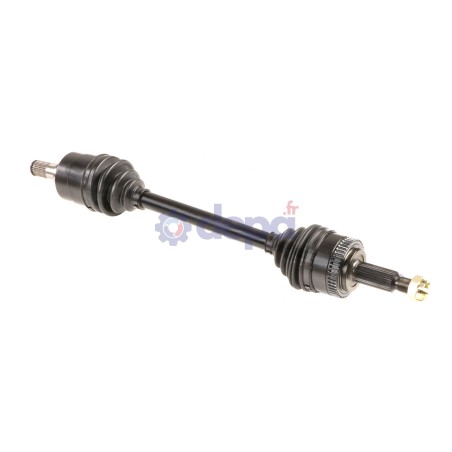

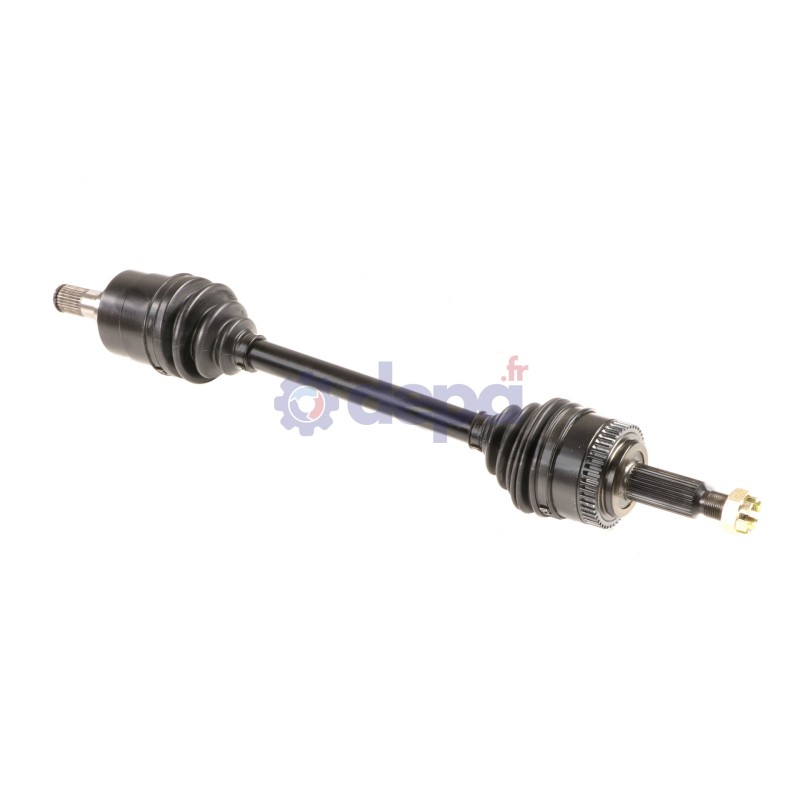

HYUNDAI / KIA G

Name: HYUNDAI / KIA G
Brand: Depa
SKU: 3548350
Price: 302.63 EUR
Availability: InStock

Ref : 3548350

Matching vehicles :

IX35 - SPORTAGE III

Family :TR

ABS on the vehicle : Yes

Compressed length : 695 mm

COTE ROUE

Shoulder diameter : 65 mm

Observations : Spline length 55mm

Type and position (snap ring/circlip) : Centered snap ring

Outer spline diameter : 31 mm

Number of splines on inner race : 25

Housing diameter : 88 mm

Nombre de cannelures extérieures : 30

COTE BOITE

Seal seat diameter : 41 mm

Number of external splines : 27

Diamètre des cannelures extérieures : 28 mm

Length of the gearbox output without seal seat : 60 mm

Diamètre du bol : 76 mm

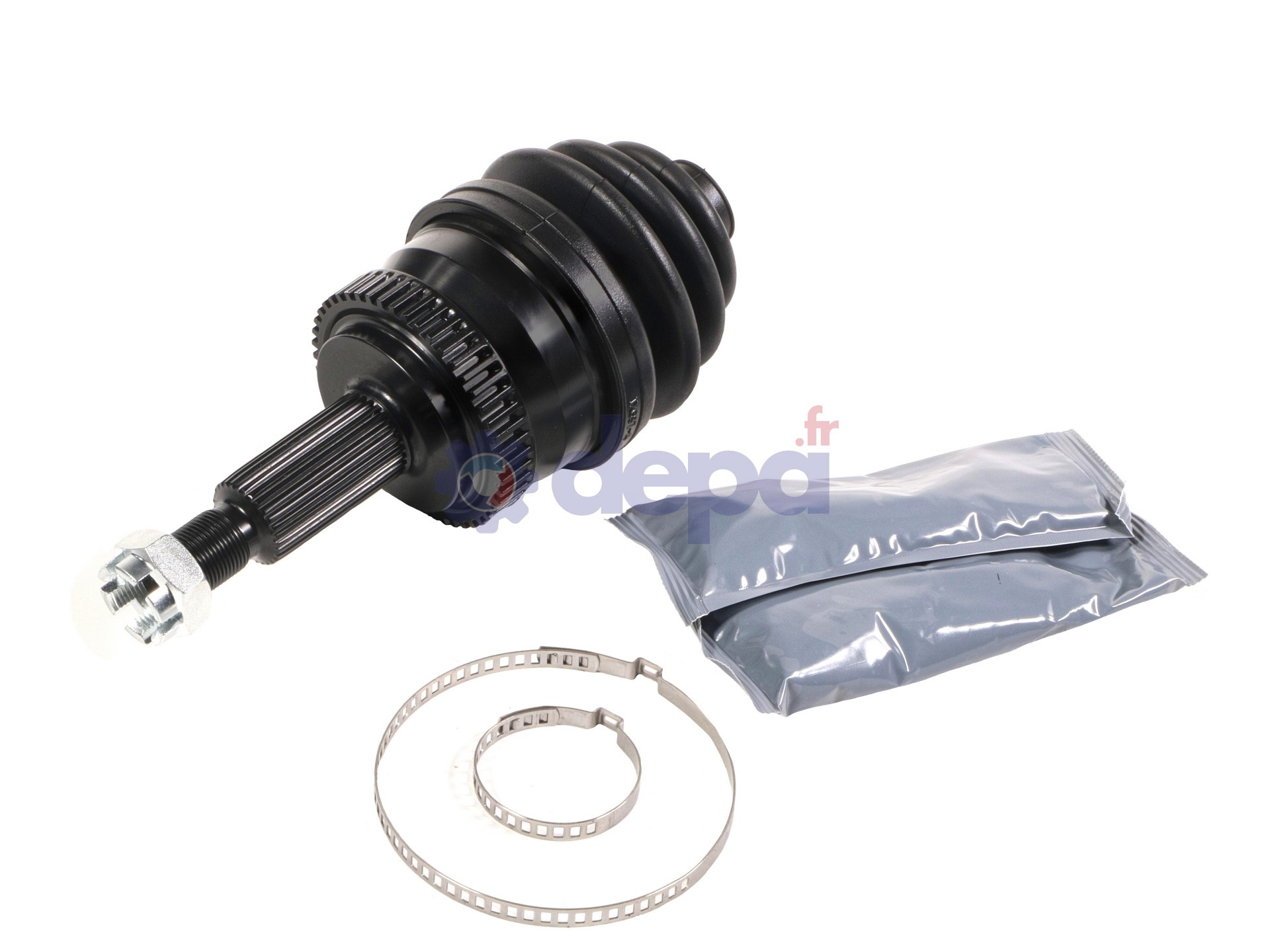

CV joint	COTE ROUE	JK64
CV joint	COTE BOITE	CBMK22GT

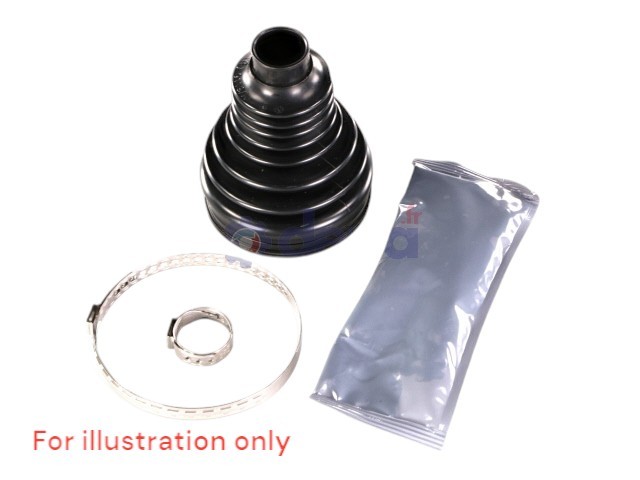

Sealing kit	COTE ROUE	5005
	COTE BOITE	6194
	COTE BOITE	6287
FIXATION	COTE ROUE	EC015
		EC042
		EC006
TRIAXE	COTE BOITE	TRIK43
COURONNE ABS		COU110

Equivalence to manufacturer references

HYUNDAI : 495002Y900
KIA : 495002Y900SJ
HYUNDAI : 495002S100
