Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

Equivalence to manufacturer references

HYUNDAI : 495011P000

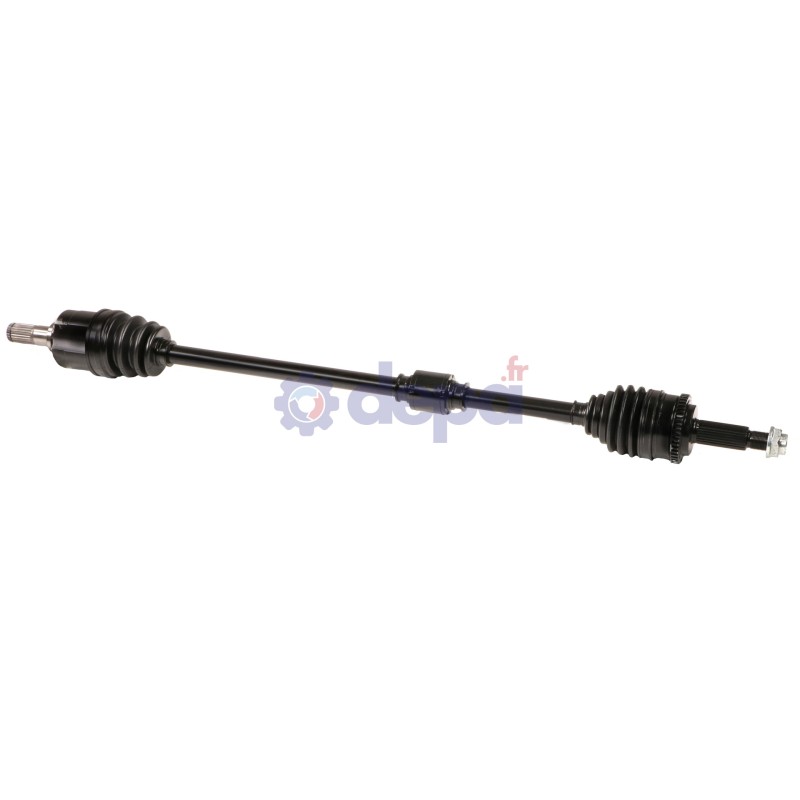

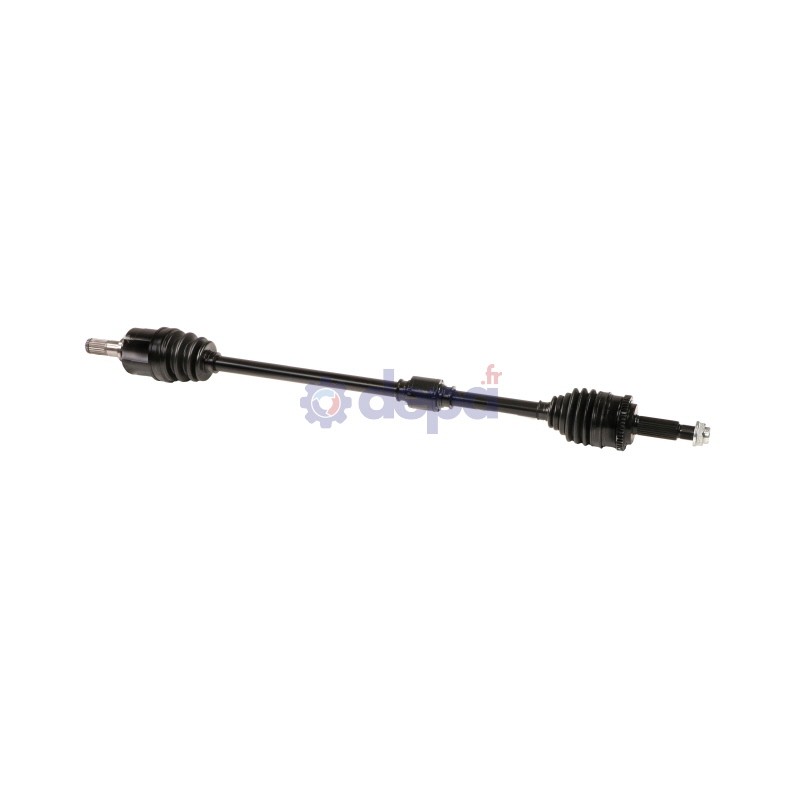

HYUNDAI IX20 RIGHT-SIDE

Name: HYUNDAI IX20 RIGHT-SIDE
Brand: Depa
SKU: 3549500
Price: 266.97 EUR
Availability: OutOfStock

Ref : 3549500

Matching vehicles :

IX20 - IX20 (JC) - VENGA

Family :TR

Collapsed length : 955 mm

ABS on the vehicle : Yes

COURONNE ABS COTE ROUE

Outer diameter : 82 mm

Inner diameter : 68 mm

Width : 8 mm

Number of teeth : 46

FIXATION COTE ROUE

Height : 20 mm

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 41 mm

Outer spline diameter : 26 mm

Housing diameter : 68.5 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 25

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28 mm

Diamètre du bol : 77 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 22

Observations : Threading Ø22mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 60 mm

Diameter (little) : 19 mm

Beads thickness : 14 mm

Length : 84 mm

Type of material : Neoprene

TRIAXE COTE BOITE

Bearing roller diameter : 32 mm

Height : 23 mm

Number of splines : 22

KITS ETANCHEITE TR neuf	COTE ROUE	5011
	COTE BOITE	6037
		6191
		6108
JOINT HOMO Echange	COTE ROUE	JHY95
JOINT HOMO Echange	COTE BOITE	CBMHY87T
FIXATION	COTE ROUE	EC020
TRIAXE	COTE BOITE	TRIP06
