Category :

Transmission

Return

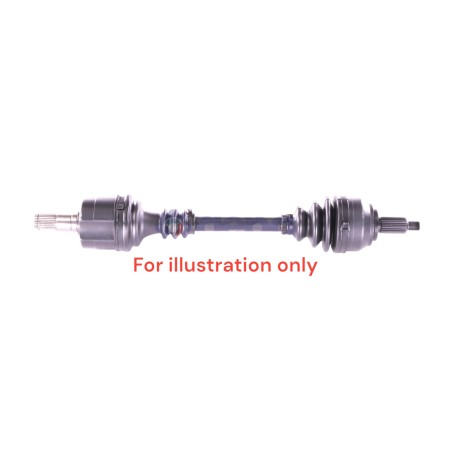

SUBARU FORESTER II REAR LEFT-SIDE

Ref : 3551070

Matching vehicles :

FORESTER II

Family :TR

Height  : 20 mm

Compressed length  : 770 mm

ABS on the vehicle  : Yes

Thread pitch type  : 22X150

Nut type  : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter  : 32 mm

Outer spline diameter  : 28 mm

Length of the gearbox output without seal seat  : 65 mm

Number of external splines  : 27

SOUFFLET COTE BOITE

Diameter (big)  : 68 mm

Diameter (little)  : 18 mm

Length  : 97 mm

Number of grooves  : 1

Type of material  : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand)  : 73 mm

Diamètre (petit)  : 21 mm

Longueur  : 91 mm

Type de matière  : NÉOPRÈNE

Fixation COTE ROUE EC020 ECROU 22X150 JUPE AV RONDELLE
Sealing kit COTE ROUE 5025 MAZDA/NISSAN
COTE BOITE 5002 FIAT
CV joint COTE BOITE CBMSU10

Equivalence to manufacturer references

  • SUBARU : 28421FE280

  • SUBARU : 28421FE281

  • SUBARU : 28421FE282
