Catalog

Search by vehicle

Category :

Transmission

Return

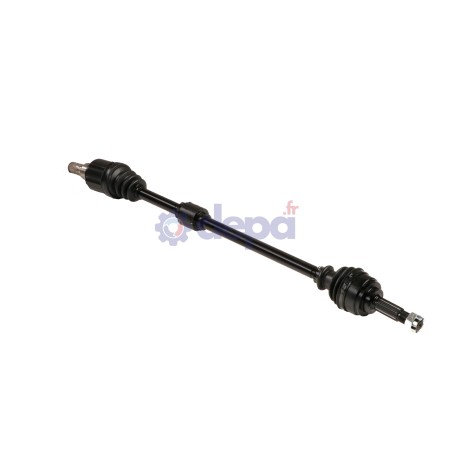

NISSAN MICRA IV AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: NISSAN MICRA IV AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3564360
Price: 246.75 EUR
Availability: OutOfStock

Ref : 3564360

Matching vehicles :

MICRA IV

Family :TR

Height : 21 mm

Compressed length : 910 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Crown

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 65 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 26 mm

Diamètre du bol : 75 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 21

Observations : HAUTEUR PORTEE 11.5 / 6 BILLES

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 66 mm

Diameter (little) : 17 mm

Beads thickness : 12 mm

Length : 85 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 73 mm

Diamètre (petit) : 19 mm

Longueur : 82 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30.5 mm

Height : 24 mm

Number of splines : 21

Sealing kit	COTE ROUE	5011
Sealing kit	COTE BOITE	6199
Fixation	COTE ROUE	EC042
Tripod joint	COTE BOITE	TRIC05
CV joint	COTE BOITE	CBMN43T

Equivalence to manufacturer references

NISSAN : 391003HD0B
