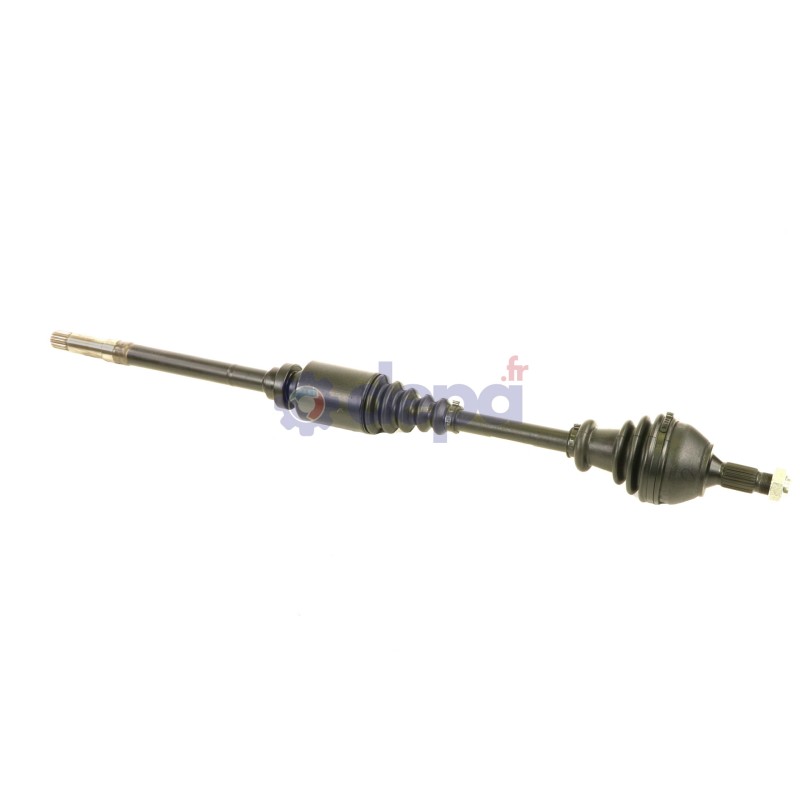

PEUGEOT PARTNER/BERLINGO RIGHT-SIDE

Name: PEUGEOT PARTNER/BERLINGO RIGHT-SIDE
Brand: Depa
SKU: 3066300
Price: 123.92 EUR
Availability: InStock

Ref : 3066300

Matching vehicles :

BERLINGO - PARTNER

Family :TR

Height : 13.5 mm

Length of the shaft (including bearing unit) : 335 mm

Non-compressed length : 890 mm

ABS on the vehicle : No

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 29.95 mm

Outer spline diameter : 24 mm

Housing diameter : 67 mm

Length of the shaft (including bearing unit) : 330 mm

Length of the gearbox output without seal seat : 73 mm

Number of external splines : 22

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 79 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 22

Observations : Spline length 43mm

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 62 mm

Diameter (little) : 27 mm

Beads thickness : 12.5 mm

Length : 88 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 74 mm

Diamètre (petit) : 28 mm

Longueur : 115 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	T3064
	COTE ROUE	5004
	COTE BOITE	6013
	COTE BOITE	6109
CV joint	COTE ROUE	JC631
	COTE ROUE	JC63
	COTE BOITE	PALCBMP06DT
Fixation	COTE ROUE	EC008
Bearing	COTE BOITE	RLT017

Equivalence to manufacturer references

CITROËN : 32730V
CITROËN : 32730W
CITROËN : 32730X
CITROËN : 32736A
CITROËN : 32736C
