Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

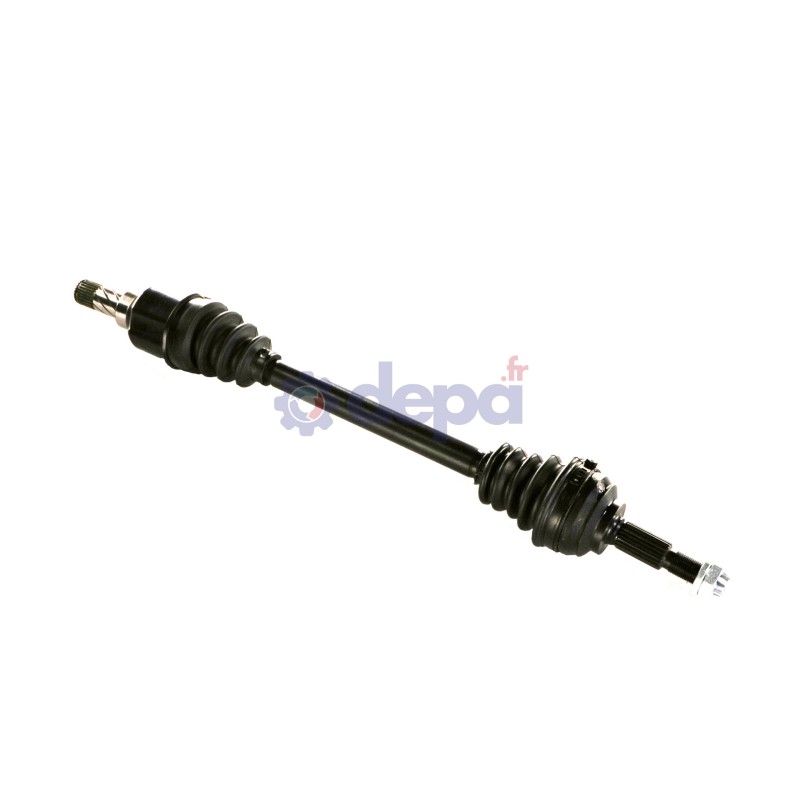

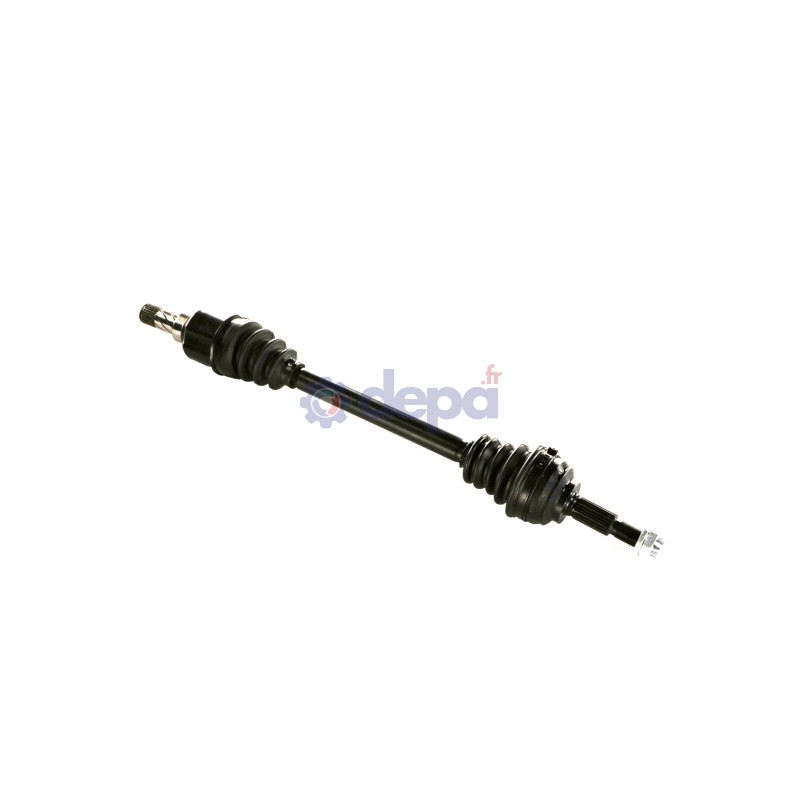

DACIA LOGAN II/SANDERO II LEFT-SIDE

Name: DACIA LOGAN II/SANDERO II LEFT-SIDE
Brand: Depa
SKU: 3603450
Price: 189.7 EUR
Availability: OutOfStock

Ref : 3603450

Matching vehicles :

SANDERO II - LOGAN II MCV - LOGAN II

Family :TR

Height : 22 mm

Compressed length : 685 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 67 mm

Length of the gearbox output without seal seat : 64 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25.1 mm

Diamètre du bol : 75.4 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 28

Observations : Threading Ø20mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

KITS ETANCHEITE TR neuf	COTE ROUE	T3144
	COTE ROUE	5002
	COTE BOITE	6192
FIXATION	COTE ROUE	EC051
JOINT HOMO Echange	COTE ROUE	JR07
JOINT HOMO Echange	COTE BOITE	CBMR07GT

Equivalence to manufacturer references

DACIA : 391013297R
