Catalog

Search by vehicle

Category :

Transmission

Return

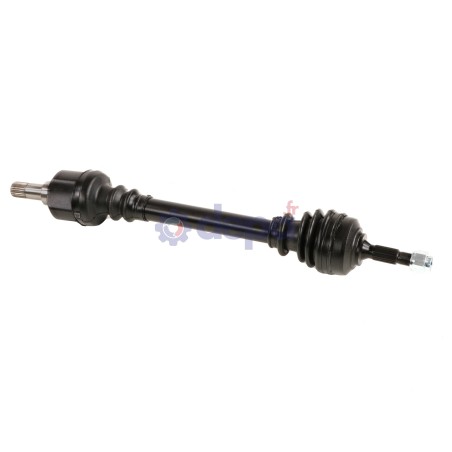

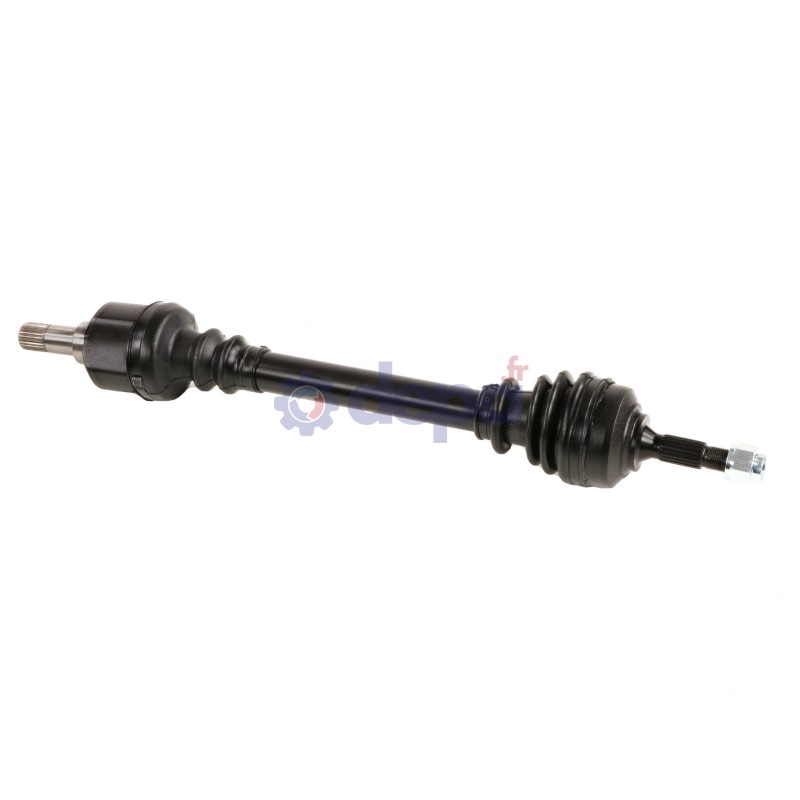

C3 II/C4 CACTUS/DS3/PEUG 208 G

Name: C3 II/C4 CACTUS/DS3/PEUG 208 G
Brand: Depa
SKU: 3068650
Price: 140.65 EUR
Availability: InStock

Ref : 3068650

Matching vehicles :

DS3 - C3 II - C4 CACTUS

Family :TR

Non-compressed length : 6400 mm

ABS on the vehicle : Yes

Compressed length : 675 mm

COTE ROUE

Number of external splines : 21

Housing diameter : 86 mm

Number of splines on inner race : 34

Observations : Conical shoulder

Type and position (snap ring/circlip) : Internal snap ring

Shoulder diameter : 48 mm

Diamètre des cannelures extérieures : 23 mm

COTE BOITE

Outer spline diameter : 26 mm

Diamètre du bol : 71 mm

Nombre de cannelures extérieures : 24

Seal seat diameter : 40 mm

Length of the gearbox output without seal seat : 62 mm

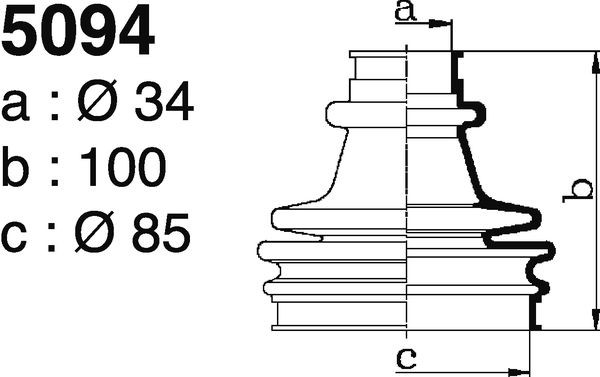

Sealing kit	COTE ROUE	5094
		T3061
		5004
	COTE BOITE	6034
		6137
		6031
		6106
FIXATION	COTE ROUE	EC002
CV joint	COTE ROUE	JC86
CV joint	COTE BOITE	CBMP34GT
TRIAXE	COTE BOITE	TRIC43

Equivalence to manufacturer references

CITROËN : 3272VP
CITROËN : 3272VQ
