Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

BMW : 33207566086

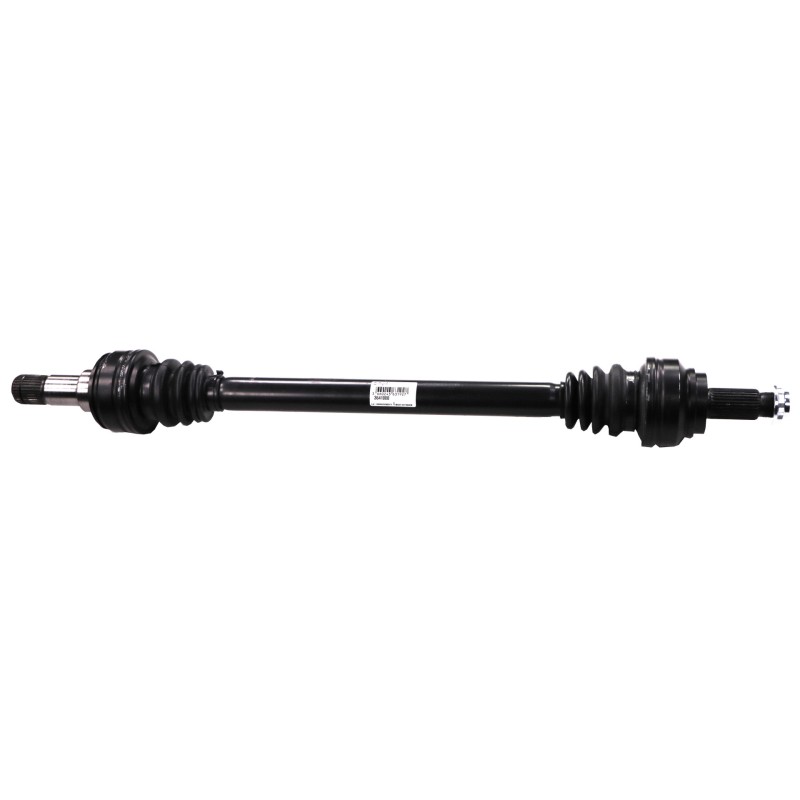

BMW SERIES 5 GT F07 REAR RIGHT-SIDE

Name: BMW SERIES 5 GT F07 REAR RIGHT-SIDE
Brand: Depa
SKU: 3641000
Price: 387.68 EUR
Availability: OutOfStock

Ref : 3641000

Matching vehicles :

SERIE 5 GT (F07) - SERIE 7 V F01/F04 - 6 DÉCAPOTABLE (F12) - SERIE 6 III F06

Family :TR

Collapsed length : 832 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 16 mm

Thread pitch type : 27X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 50 mm

Outer spline diameter : 35 mm

Housing diameter : 93.5 mm

Length of the gearbox output without seal seat : 85 mm

Number of external splines : 32

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 33 mm

Diamètre du bol : 94 mm

Shoulder diameter : 65 mm

Nombre de cannelures extérieures : 30

Number of splines on inner race : 28

Observations : Threading length 20mm Ø27mm/Spline length on shoulder 54mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 57 mm

Diameter (little) : 17 mm

Length : 76 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 57 mm

Diamètre (petit) : 17 mm

Longueur : 76 mm

Type de matière : NÉOPRÈNE

Fixation	COTE ROUE	EC048
Sealing kit	COTE ROUE	5077
Sealing kit	COTE BOITE	5077
CV joint	COTE BOITE	CBMB101D
