Catalog

Search by vehicle

Category :

Transmission

Return

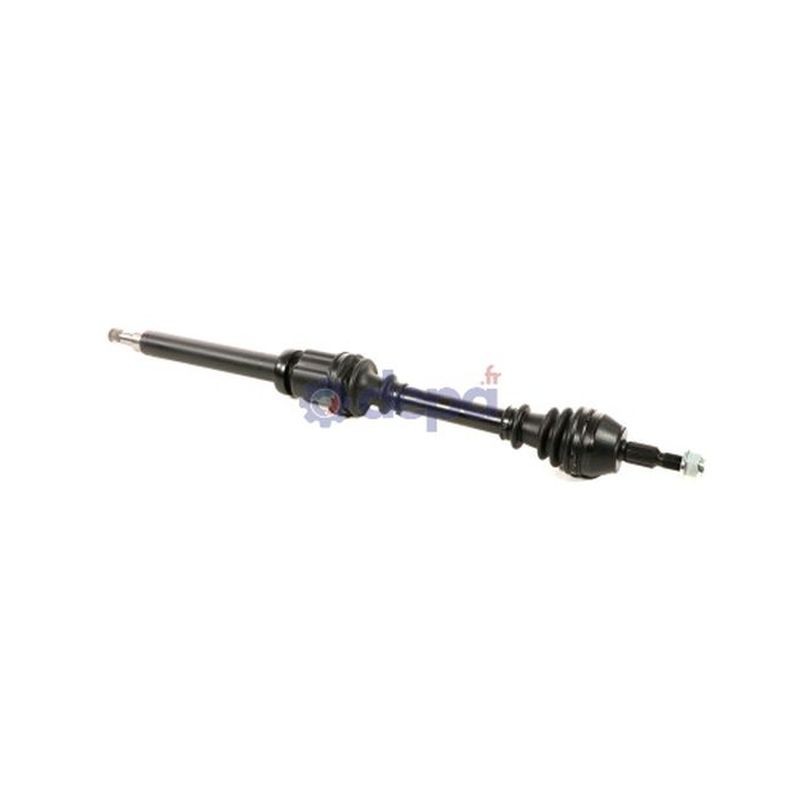

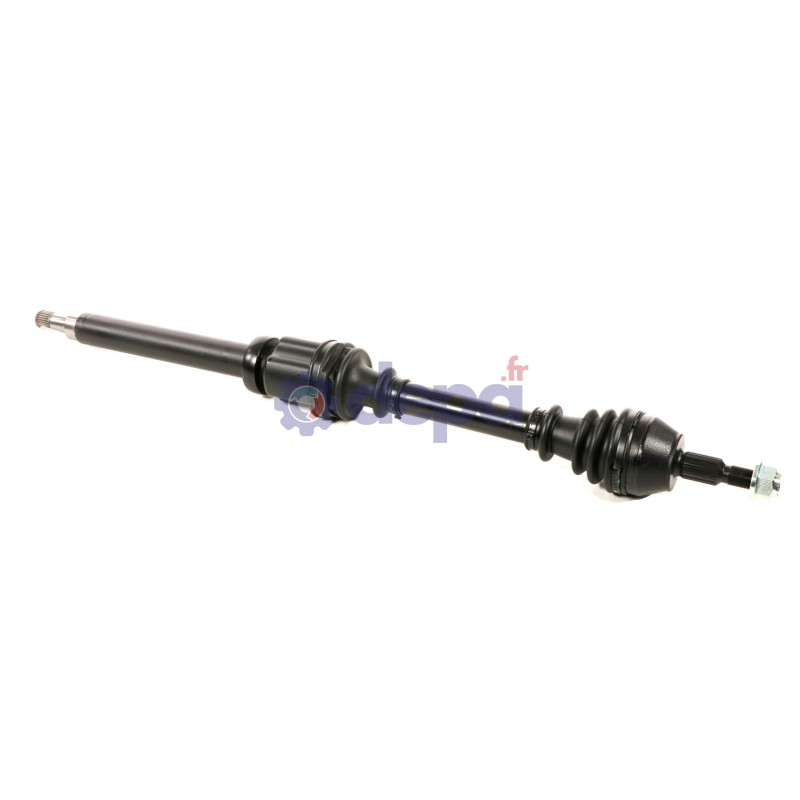

FOCUS III/C-MAX II TDCI RIGHT-SIDE

Name: FOCUS III/C-MAX II TDCI RIGHT-SIDE
Brand: Depa
SKU: 3650900
Price: 224.29 EUR
Availability: InStock

Ref : 3650900

Matching vehicles :

C-MAX II - FOCUS III - GRAND C-MAX II

Family :TR

Height : 26 mm

Compressed length : 965 mm

Length of the shaft (including bearing unit) : 385 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 76 mm

Length of the shaft (including bearing unit) : 385 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29 mm

Diamètre du bol : 87 mm

Shoulder diameter : 63 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 26

Observations : Threading length 40mm/Spline length on shoulder 37mm

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 75 mm

Inner diameter : 45 mm

Width : 19 mm

SOUFFLET COTE BOITE

Type of material : NITRILE

SOUFFLET COTE ROUE

Diameter (big) : 74 mm

Diameter (little) : 28 mm

Length : 115 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41 mm

Height : 21 mm

Number of splines : 32

Fixation	COTE ROUE	EC019
Sealing kit	COTE ROUE	5004
Sealing kit	COTE BOITE	6200
CV joint	COTE ROUE	JFO09
CV joint	COTE BOITE	PALCBMFO09DT
Tripod joint	COTE BOITE	TRIFO09
Bearing	COTE BOITE	RLT033

Equivalence to manufacturer references

FORD : 1686588
FORD : 1692121
FORD : 1713000
FORD : 1756525
FORD : 1828480
FORD : 1828481
FORD : 1840103
FORD : 1840104
FORD : 1840119
FORD : 1840120
FORD : 2006987
FORD : 2006992
FORD : 2459534
FORD : 2459536
FORD : 2557549
FORD : 2557565
FORD : AV613B436CB
FORD : AV613B436CC
FORD : AV613B436CD
FORD : AV613B436JA
FORD : AV613B436JB
FORD : F1F63B436GA
FORD : F1F63B436GB
FORD : F1F63B436GC
FORD : F1F63B436HA
FORD : F1F63B436HB
FORD : F1F63B436HC
FORD : RMAV613B436C2C
FORD : RMAV613B436C2D
FORD : RMAV613B436J2A
FORD : RMAV613B436J2B
