Catalog

Search by vehicle

Category :

Transmission

Return

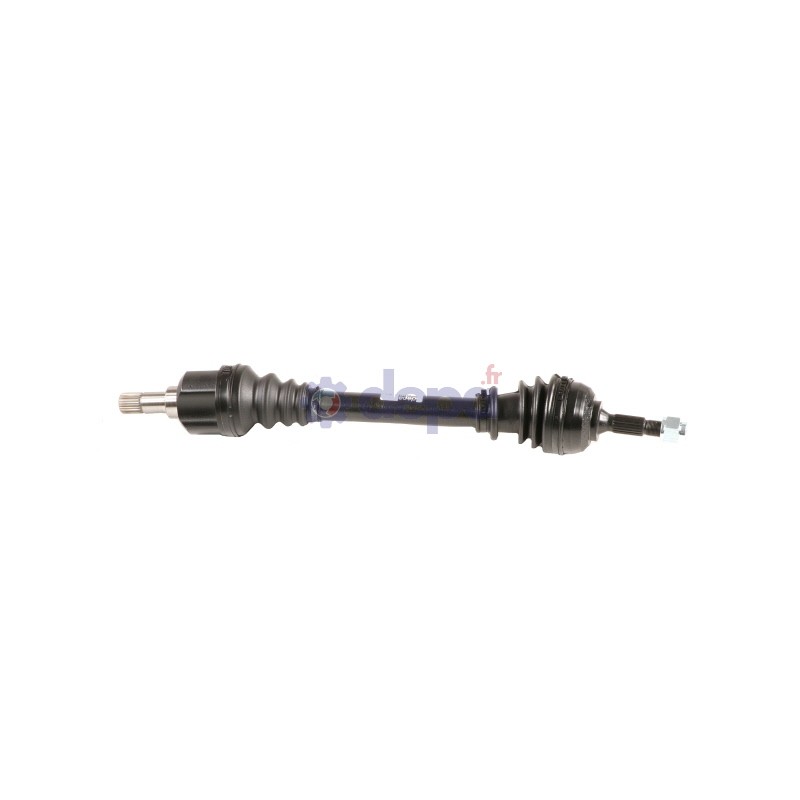

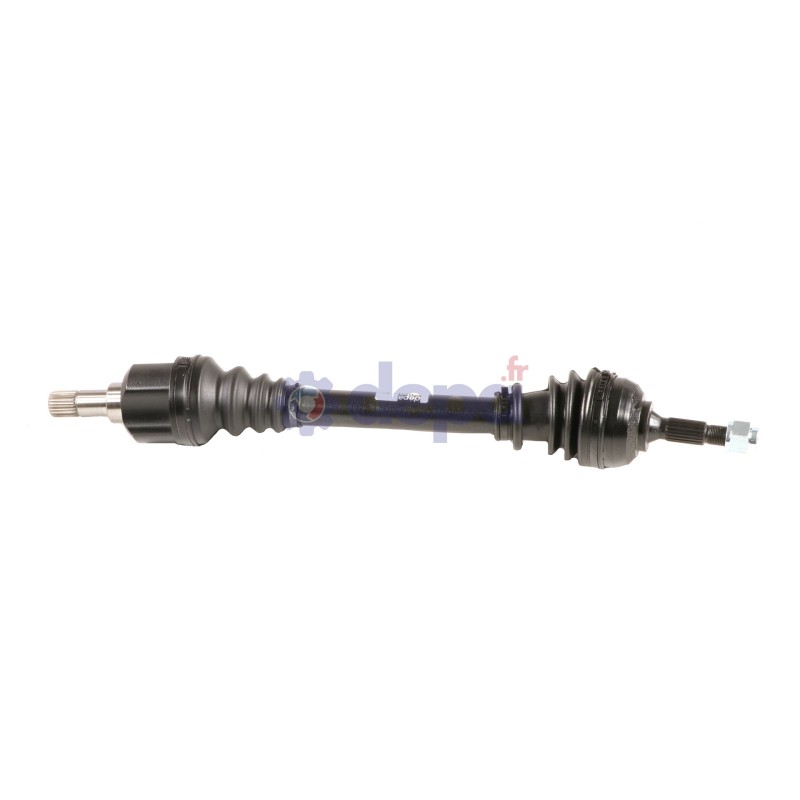

CITROEN C4 CACTUS / DS3 G

Name: CITROEN C4 CACTUS / DS3 G
Brand: Depa
SKU: 3070250
Price: 170.58 EUR
Availability: InStock

Ref : 3070250

Matching vehicles :

DS3 - C4 CACTUS - C3 II - C3 III

Family :TR

ABS on the vehicle : Yes

Compressed length : 675 mm

Non-compressed length : 640 mm

Observations : Steering knuckle Ø72mm

COTE ROUE

Shoulder diameter : 48 mm

Number of splines on inner race : 34

Outer spline diameter : 23 mm

Observations : Conical shoulder

Nombre de cannelures extérieures : 21

Type and position (snap ring/circlip) : Internal snap ring

Diamètre du bol : 86 mm

COTE BOITE

Number of external splines : 24

Housing diameter : 71 mm

Length of the gearbox output without seal seat : 62 mm

Seal seat diameter : 40 mm

Diamètre des cannelures extérieures : 26 mm

Sealing kit	COTE ROUE	T3061
	COTE ROUE	5010
	COTE BOITE	6106
		6137
		6034
		6031
		6121
FIXATION	COTE ROUE	EC002
CV joint	COTE ROUE	JC86
CV joint	COTE BOITE	CBMP34GT
TRIAXE	COTE BOITE	TRIC43

Equivalence to manufacturer references

CITROËN : 1612690380
CITROËN : 9801048580
