Catalog

Search by vehicle

Category :

Transmission

Return

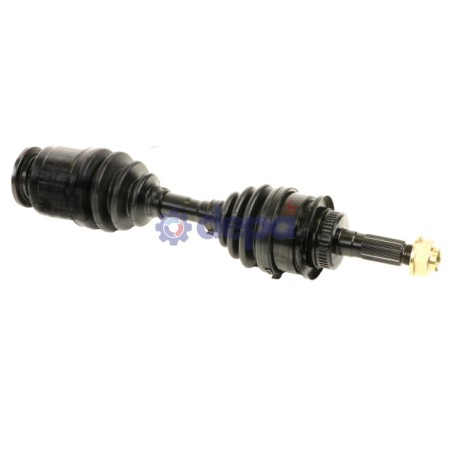

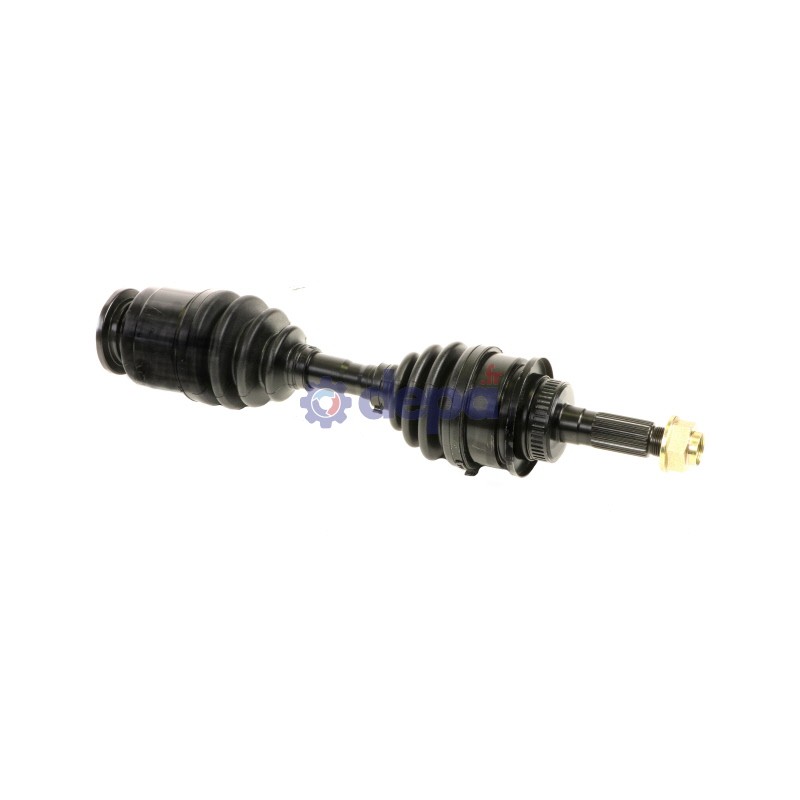

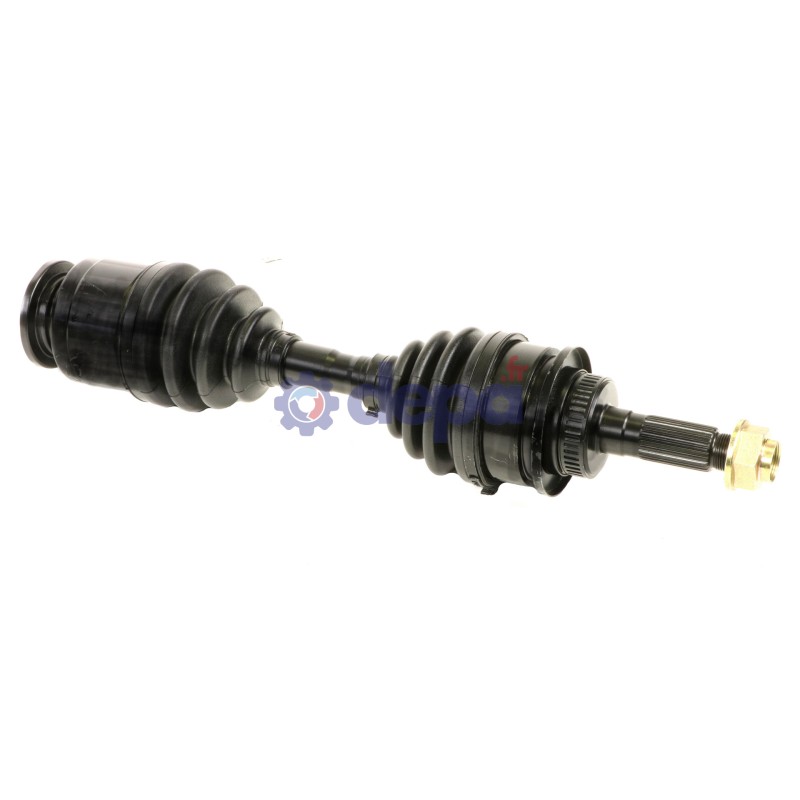

FORD/MAZDA FRONT LEFT-SIDE

Name: FORD/MAZDA FRONT LEFT-SIDE
Brand: Depa
SKU: 3651902
Price: 338.8 EUR
Availability: InStock

Ref : 3651902

Matching vehicles :

RANGER III (ET) - BT-50

Family :TR

Height : 25 mm

Compressed length : 495 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 65 mm

Inner diameter : 61 mm

Width : 15 mm

Number of teeth : 44

JOINT HOMOCINETIQUE COTE BOITE

Housing diameter : 90 mm

Number of internal splines : 26

Number of splines on inner race : 36

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 29 mm

Diamètre du bol : 92 mm

Shoulder diameter : 61 mm

Number of external splines : 28

Nombre de cannelures sur la noix : 36

Observations : 8 balls/Threading length wheel side 22mm/Threading length gearbox side 24mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 88 mm

Diameter (little) : 22 mm

Length : 88 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

CV joint	COTE ROUE	JFO19
CV joint	COTE BOITE	CBFFO19G
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	5020
Fixation	COTE ROUE	EC021
ABS ring		COU159

Equivalence to manufacturer references

FORD : 1447140
FORD USA : 6M343B437CA
MAZDA : PP042560X
