Catalog

Search by vehicle

Category :

Transmission

Return

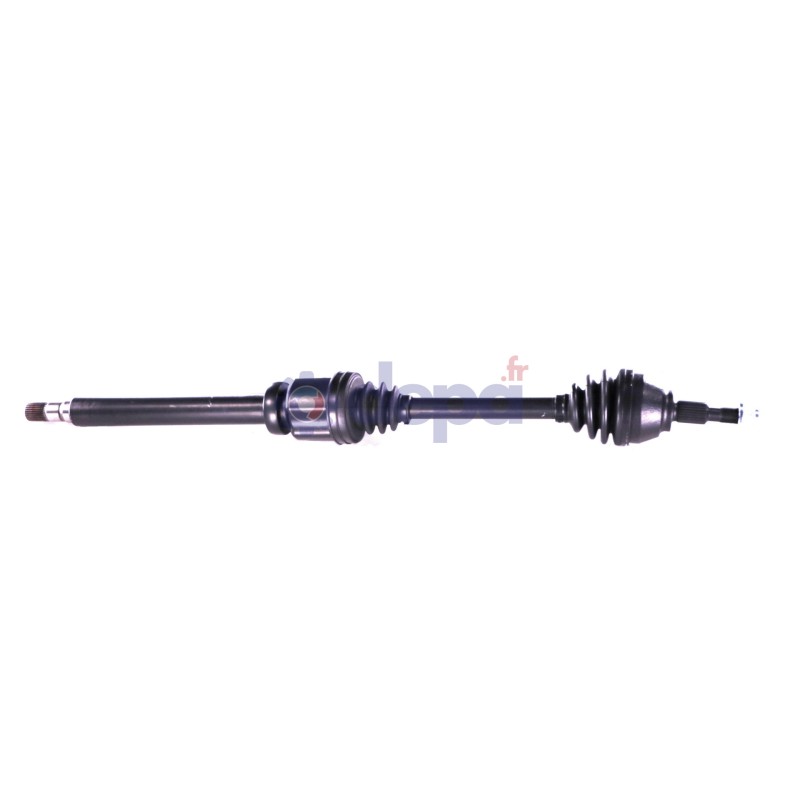

FORD GALAXY III POWERSHIFT RIGHT-SIDE

Name: FORD GALAXY III POWERSHIFT RIGHT-SIDE
Brand: Depa
SKU: 3652500
Price: 241.89 EUR
Availability: OutOfStock

Ref : 3652500

Matching vehicles :

GALAXY III - S-MAX II

Family :TR

Height : 26 mm

Compressed length : 915 mm

Length of the shaft (including bearing unit) : 397 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 33.79 mm

Outer spline diameter : 29 mm

Housing diameter : 80.5 mm

Length of the shaft (including bearing unit) : 397 mm

Length of the gearbox output without seal seat : 56 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 92 mm

Shoulder diameter : 55 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 28

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 75 mm

Inner diameter : 45 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 78 mm

Diameter (little) : 34 mm

Beads thickness : 1.5 mm

Length : 94 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 28

Fixation	COTE ROUE	EC019
CV joint	COTE ROUE	JFO47
CV joint	COTE BOITE	PALCBMFO251DT
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6140
Tripod joint	COTE BOITE	TRIFO75
Bearing	COTE BOITE	RLT033

Equivalence to manufacturer references

FORD : 1885156
FORD : 1943309
FORD : 2032954
FORD : 2147244
FORD : 2503813
FORD : E1G13B436FD
FORD : E1G13B436FE
FORD : E1G13B436FF
FORD : E1G13B436FG
