Catalog

Search by vehicle

Category :

Transmission

Return

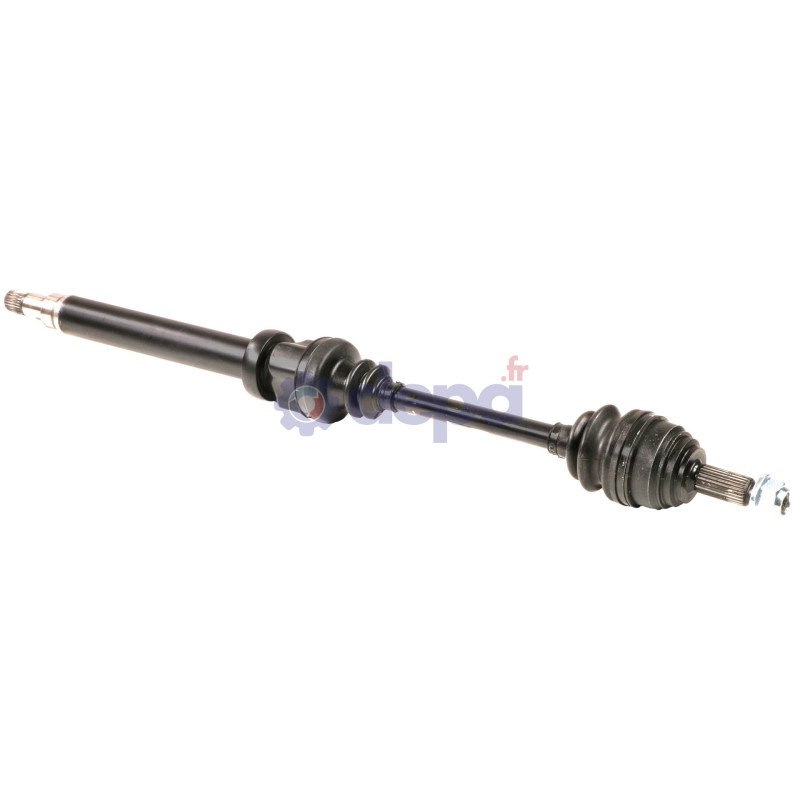

FORD FIESTA VI/B-MAX RIGHT-SIDE

Name: FORD FIESTA VI/B-MAX RIGHT-SIDE
Brand: Depa
SKU: 3656100
Price: 242.29 EUR
Availability: InStock

Ref : 3656100

Matching vehicles :

B-MAX - FIESTA VI

Family :TR

Height : 26 mm

Compressed length : 920 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 25 mm

Housing diameter : 68 mm

Length of the shaft (including bearing unit) : 370 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 23

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 80 mm

Shoulder diameter : 53 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 24

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 75 mm

Inner diameter : 45 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 19 mm

Beads thickness : 15.5 mm

Length : 91 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Diamètre extérieur : 65 mm

Height : 25 mm

Number of splines : 22

Fixation	COTE ROUE	EC019
CV joint	COTE ROUE	JFO32
CV joint	COTE BOITE	PALCBMFO19DT
Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6033
Bearing	COTE BOITE	RLT033

Equivalence to manufacturer references

FORD : 1789457
FORD : 1822698
FORD : 1840185
FORD : CV173B436BC
FORD : CV173B436BD
FORD : RMCV173B436B2D
