Catalog

Search by vehicle

Category :

Transmission

Return

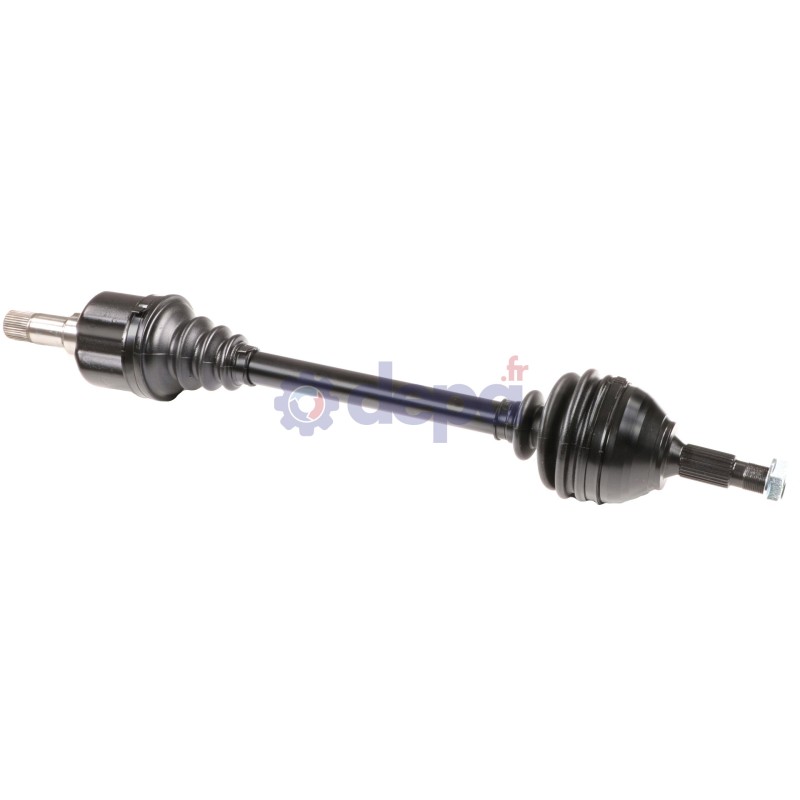

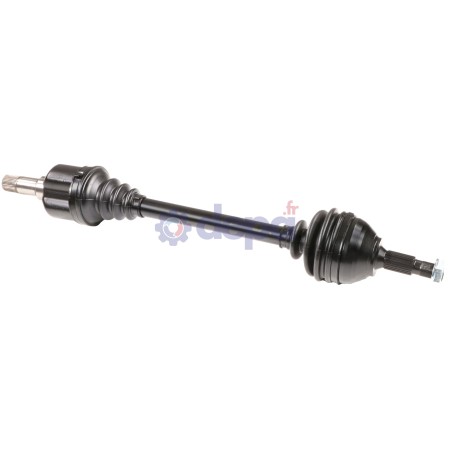

CITROEN JUMPY III G

Name: CITROEN JUMPY III G
Brand: Depa
SKU: 3071150
Price: 177.01 EUR
Availability: InStock

Ref : 3071150

Matching vehicles :

EXPERT 3 - VIVARO C - JUMPY 3 - SPACE TOURER

Family :TR

ABS on the vehicle : Yes

Non-compressed length : 735 mm

COTE ROUE

Outer spline diameter : 28.5 mm

Shoulder diameter : 59 mm

Type and position (snap ring/circlip) : Internal snap ring

Nombre de cannelures extérieures : 28

Nombre de cannelures sur la noix : 39

Diamètre du bol : 96 mm

COTE BOITE

Seal seat diameter : 40 mm

Diamètre des cannelures extérieures : 28 mm

Number of external splines : 37

Number of splines on inner race : 39

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 62 mm

Sealing kit	COTE ROUE	T3071
		5008
		5024
		5020
	COTE BOITE	6115
		6115
		6115
FIXATION	COTE ROUE	EC008
CV joint	COTE ROUE	JP58
		JC82
		JC82
	COTE BOITE	CBMC82GT
		CBMC82GT
		CBMC82GT
RESSORT	COTE BOITE	REC44
		REC44
		REC44
TRIAXE	COTE BOITE	TRIC44
		TRIC44
		TRIC44

Equivalence to manufacturer references

CITROËN : 9806153080
CITROËN : 1614919680
