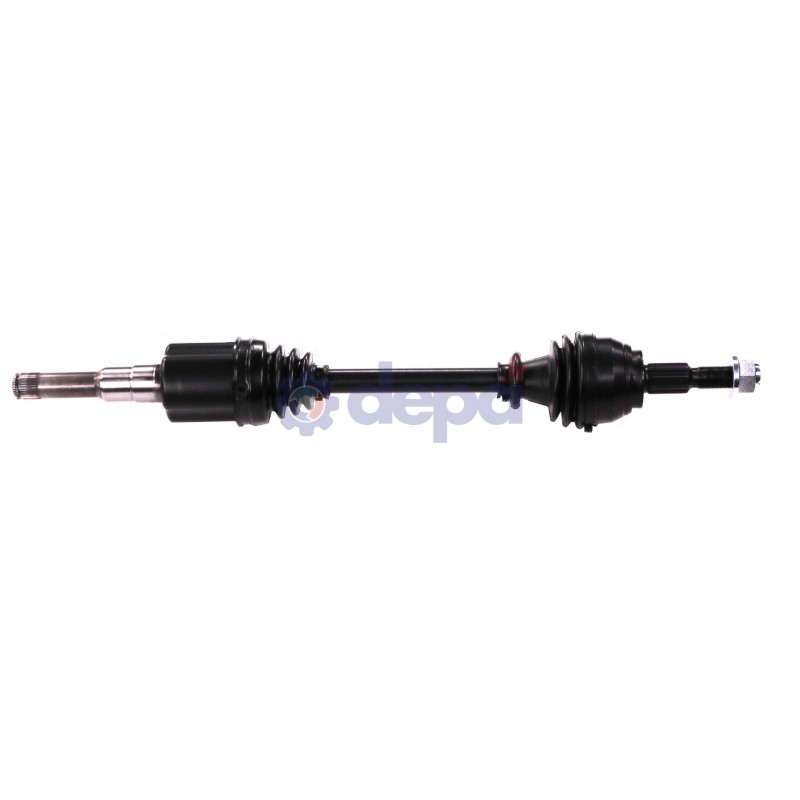

FORD FOCUS IV AUTOMATIC TRANSMISSION LEFT-SIDE

Name: FORD FOCUS IV AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3658170
Price: 233.46 EUR
Availability: OutOfStock

Ref : 3658170

Matching vehicles :

FOCUS IV

Family :TR

Height : 26 mm

Compressed length : 685 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 38 mm

Outer spline diameter : 27 mm

Housing diameter : 72.5 mm

Length of the gearbox output without seal seat : 120 mm

Number of external splines : 35

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 81 mm

Shoulder diameter : mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 27

Number of internal splines : 24

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41 mm

Outer diameter : 66 mm

Height : 18.4 mm

Number of splines : 22

CV joint	COTE ROUE	JFO8160
CV joint	COTE BOITE	CBMFO8170GT
Fixation	COTE ROUE	EC019
Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6082

Equivalence to manufacturer references

FORD : 2234732
FORD : 2253907
FORD : 2346540
FORD : 2454859
FORD : 2537224
FORD : 2677852
FORD : JX673B437HAC
FORD : JX673B437HAD
FORD : JX673B437HAE
FORD : JX673B437HAF
FORD : JX673B437HAG
FORD : JX673B437HAH
