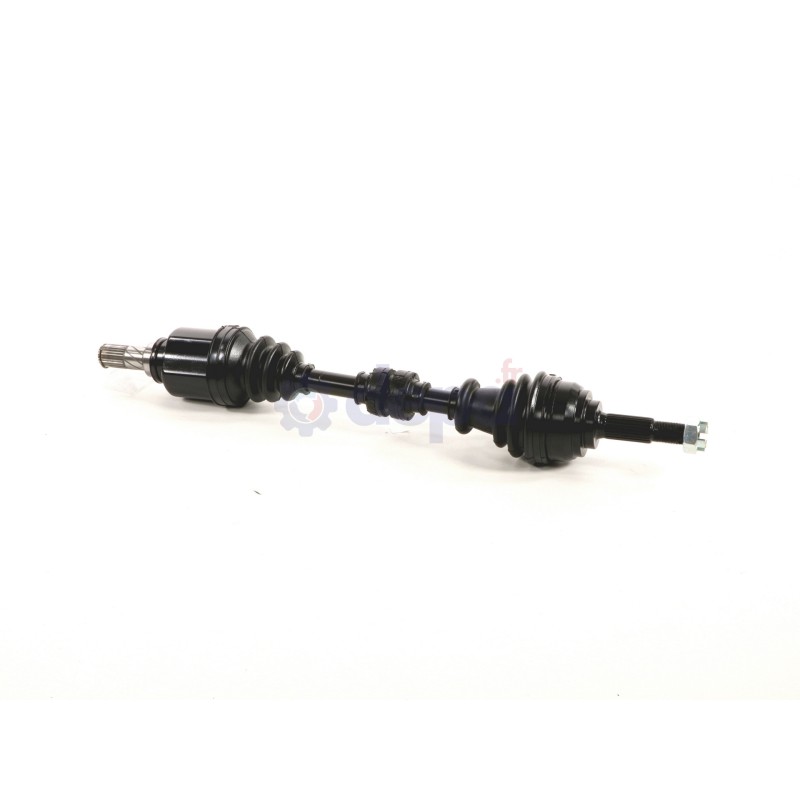

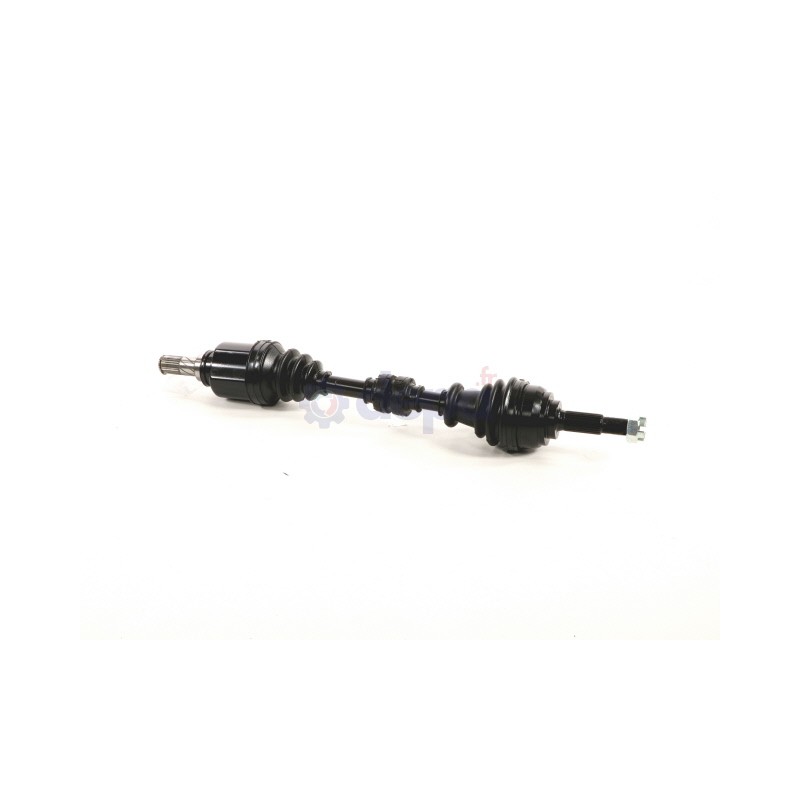

NISSAN NOTE II LEFT-SIDE

Name: NISSAN NOTE II LEFT-SIDE
Brand: Depa
SKU: 3661050
Price: 316.19 EUR
Availability: InStock

Ref : 3661050

Matching vehicles :

NOTE II

Family :TR

Height : 26 mm

Compressed length : 635 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 27 mm

Housing diameter : 69 mm

Length of the gearbox output without seal seat : 64 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 26 mm

Diamètre du bol : 82 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 23

Observations : Threading length 37mm Ø22mm/Spline length on shoulder 53.5mm/6 balls

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 21 mm

Beads thickness : 15 mm

Length : 86 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 34 mm

Height : 26.5 mm

Number of splines : 23

Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6061
Fixation	COTE ROUE	EC019
CV joint	COTE ROUE	JN10
CV joint	COTE BOITE	CBMN07GT
Tripod joint	COTE BOITE	TRIF55

Equivalence to manufacturer references

NISSAN : 391013VD0B
