Catalog

Search by vehicle

Category :

Transmission

Return

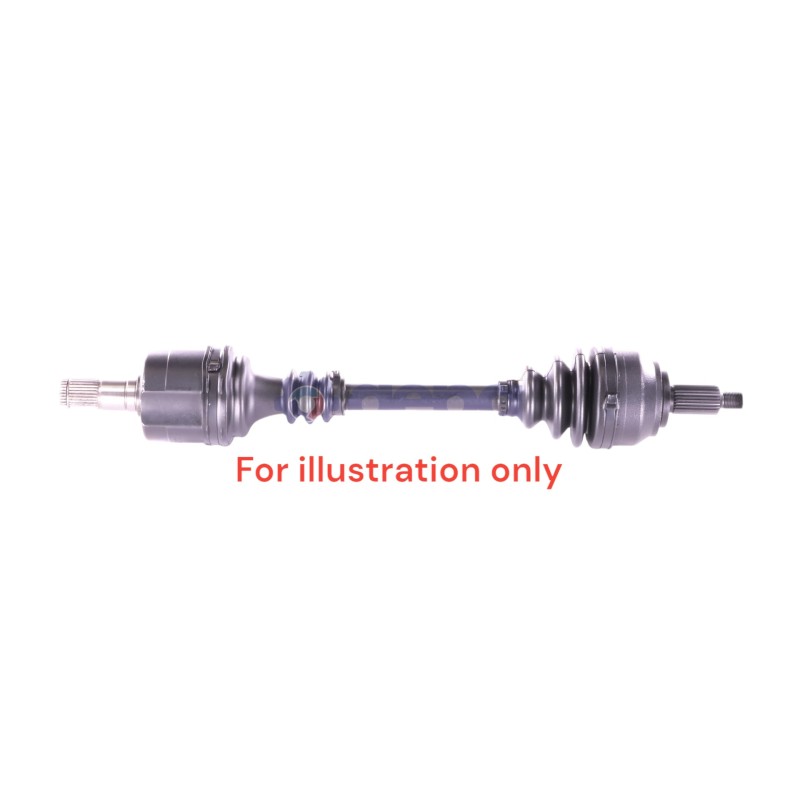

CITROEN C-ELYSEE LEFT-SIDE

Name: CITROEN C-ELYSEE LEFT-SIDE
Brand: Depa
SKU: 3072950
Price: 168.97 EUR
Availability: InStock

Ref : 3072950

Matching vehicles :

C-ELYSEE

Family :TR

Non-compressed length : 690 mm

ABS on the vehicle : Yes

COTE BOITE

Seal seat diameter : 40 mm

Diamètre des cannelures extérieures : 26 mm

Diamètre du bol : 71 mm

Length of the gearbox output without seal seat : 62 mm

Nombre de cannelures extérieures : 24

COTE ROUE

Number of external splines : 21

Outer spline diameter : 23 mm

Observations : Conical shoulder

Housing diameter : 86 mm

Type and position (snap ring/circlip) : Internal snap ring

Shoulder diameter : 48 mm

Number of splines on inner race : 34

Sealing kit	COTE ROUE	5094
		T3061
		5004
		5010
	COTE BOITE	6106
	COTE BOITE	6121
CV joint	COTE ROUE	JC86
CV joint	COTE BOITE	CBMP34GT
FIXATION	COTE ROUE	EC002
TRIAXE	COTE BOITE	TRIC43

Equivalence to manufacturer references

CITROËN : 1608419780
CITROËN : 9671573180
