Equivalence to manufacturer references

SSANGYONG : 4130034201

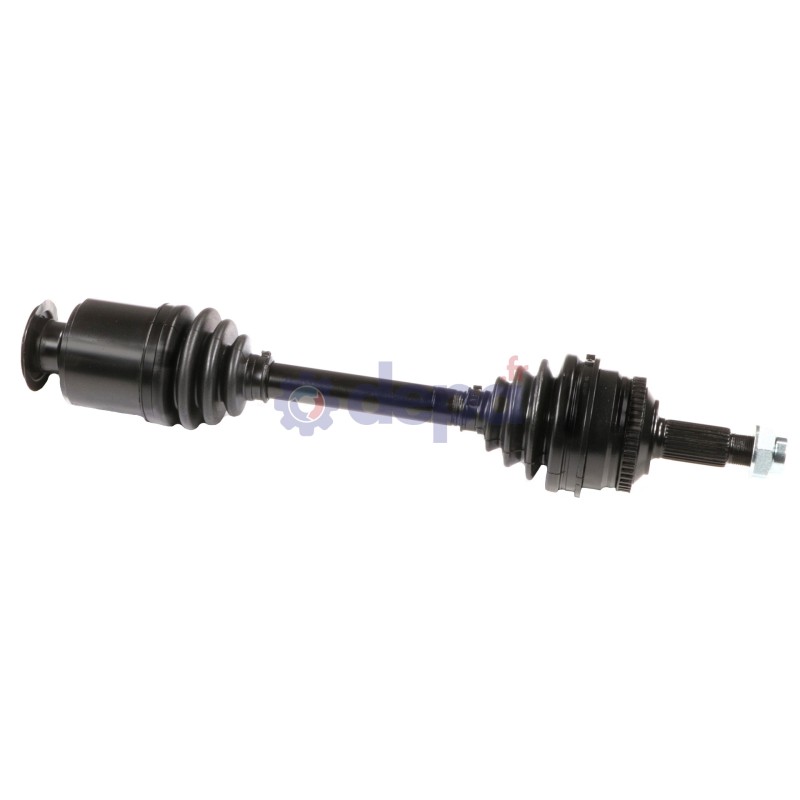

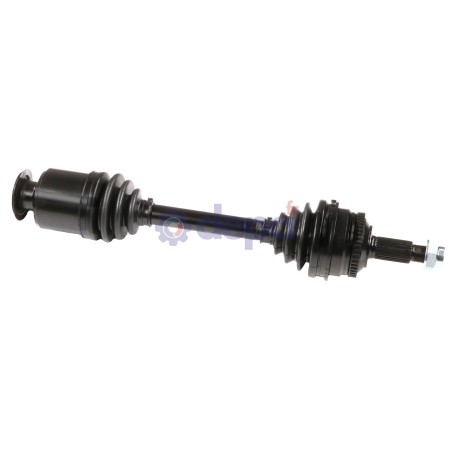

SSANGYONG KORANDO II RIGHT-SIDE

Name: SSANGYONG KORANDO II RIGHT-SIDE
Brand: Depa
SKU: 3701100
Price: 388.46 EUR
Availability: OutOfStock

Ref : 3701100

Matching vehicles :

KORANDO II

Family :TR

Collapsed length : 565 mm

ABS on the vehicle : Yes

COURONNE ABS COTE ROUE

Outer diameter : 86 mm

Inner diameter : 77 mm

Width : 10 mm

Number of teeth : 48

FIXATION COTE ROUE

Height : 25 mm

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 27 mm

Housing diameter : 89.2 mm

Number of internal splines : 27

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 30.5 mm

Diamètre du bol : 90.5 mm

Shoulder diameter : 58 mm

Number of external splines : 28

Number of splines on inner race : 34

Type and position (snap ring/circlip) : External snap ring

SOUFFLET COTE BOITE

Diameter (big) : 88 mm

Diameter (little) : 22 mm

Length : 88 mm

Number of grooves : 1

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45.6 mm

Height : 28 mm

Number of splines : 26

CV joint	COTE ROUE	JSS11
CV joint	COTE BOITE	CBFSS11D
Fixation	COTE ROUE	EC021
Sealing kit	COTE ROUE	5026
Sealing kit	COTE BOITE	5020
ABS ring		COU046
