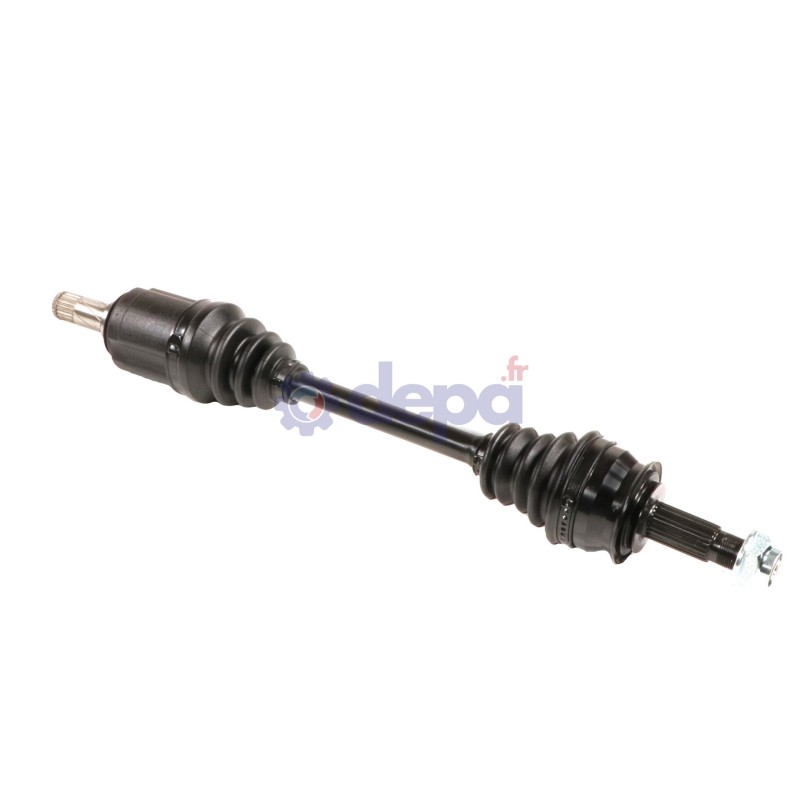

CHEVROLET AVEO II LEFT-SIDE

Name: CHEVROLET AVEO II LEFT-SIDE
Brand: Depa
SKU: 3716050
Price: 206.62 EUR
Availability: InStock

Ref : 3716050

Matching vehicles :

AVEO II

Family :TR

Height : 25 mm

Compressed length : 600 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 24 mm

Housing diameter : 70 mm

Length of the gearbox output without seal seat : 57 mm

Number of external splines : 22

Number of splines on inner race : 30

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 75.3 mm

Shoulder diameter : 52.5 mm

Nombre de cannelures extérieures : 25

Nombre de cannelures sur la noix : 30

Observations : Spline length on shoulder 47mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 35 mm

Height : 24.5 mm

Number of splines : 30

Sealing kit	COTE ROUE	5002
Sealing kit	COTE BOITE	6192
CV joint	COTE ROUE	JCHE60
CV joint	COTE BOITE	CBMCHE30T
Fixation	COTE ROUE	EC021
Tripod joint	COTE BOITE	TRIR12

Equivalence to manufacturer references

CHEVROLET : 96852740
