Catalog

Search by vehicle

Category :

Transmission

Return

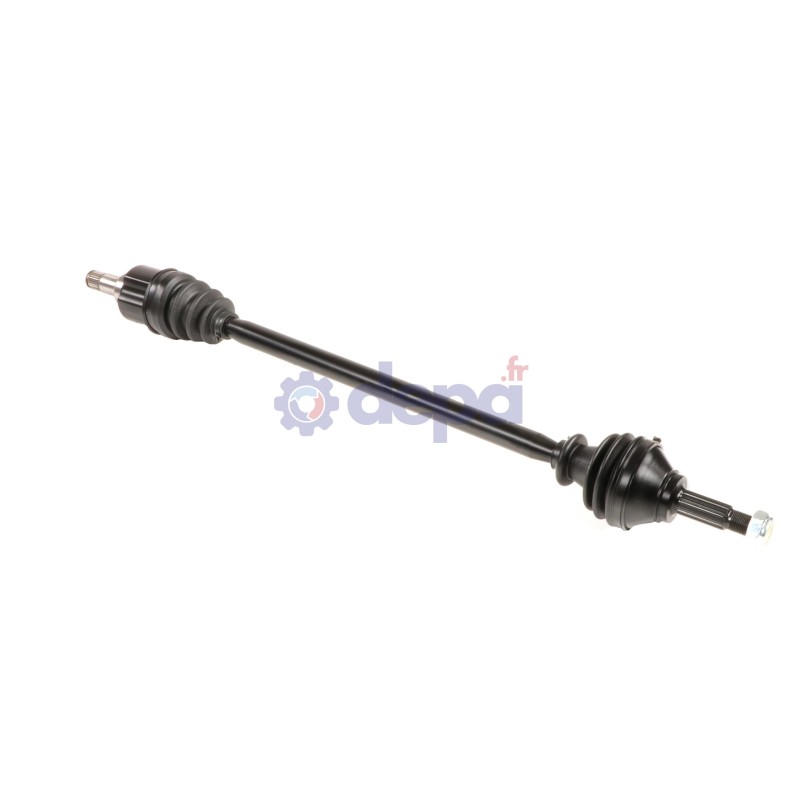

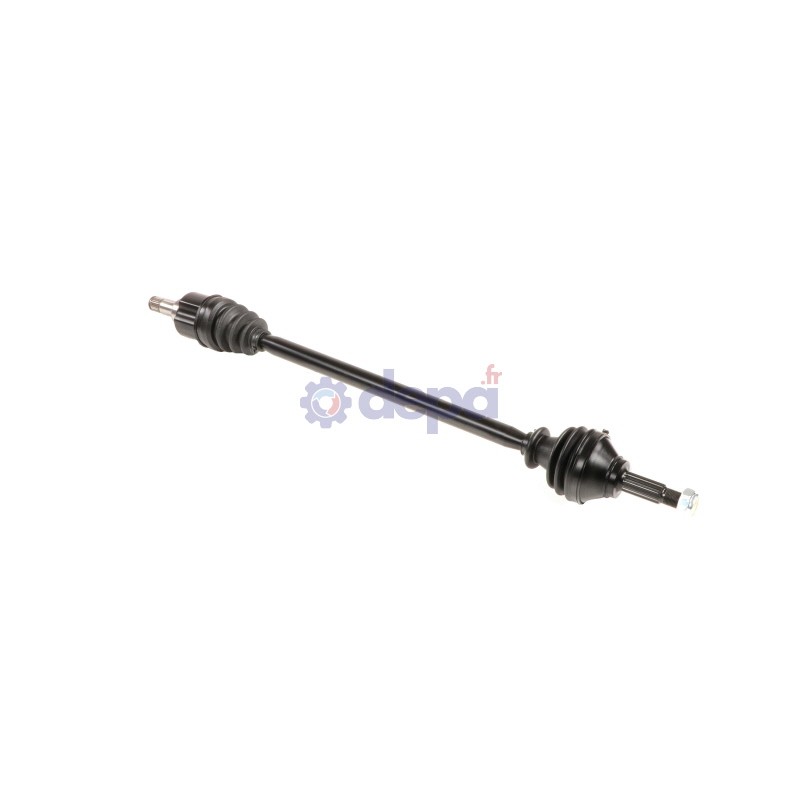

VOLKSWAGEN UP/SEAT MII/SKODA CITIGO RIGHT-SIDE

Name: VOLKSWAGEN UP/SEAT MII/SKODA CITIGO RIGHT-SIDE
Brand: Depa
SKU: 3771000
Price: 224.15 EUR
Availability: InStock

Ref : 3771000

Matching vehicles :

UP! - CITIGO - MII - UP! (121, 122, BL1, BL2, BL3, 123)

Family :TR

Height : 16.5 mm

Compressed length : 810 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 23 mm

Housing diameter : 60 mm

Length of the gearbox output without seal seat : 58 mm

Number of external splines : 28

Number of splines on inner race : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 24 mm

Diamètre du bol : 76 mm

Shoulder diameter : 46 mm

Nombre de cannelures extérieures : 22

Nombre de cannelures sur la noix : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 21 mm

Number of splines : 26

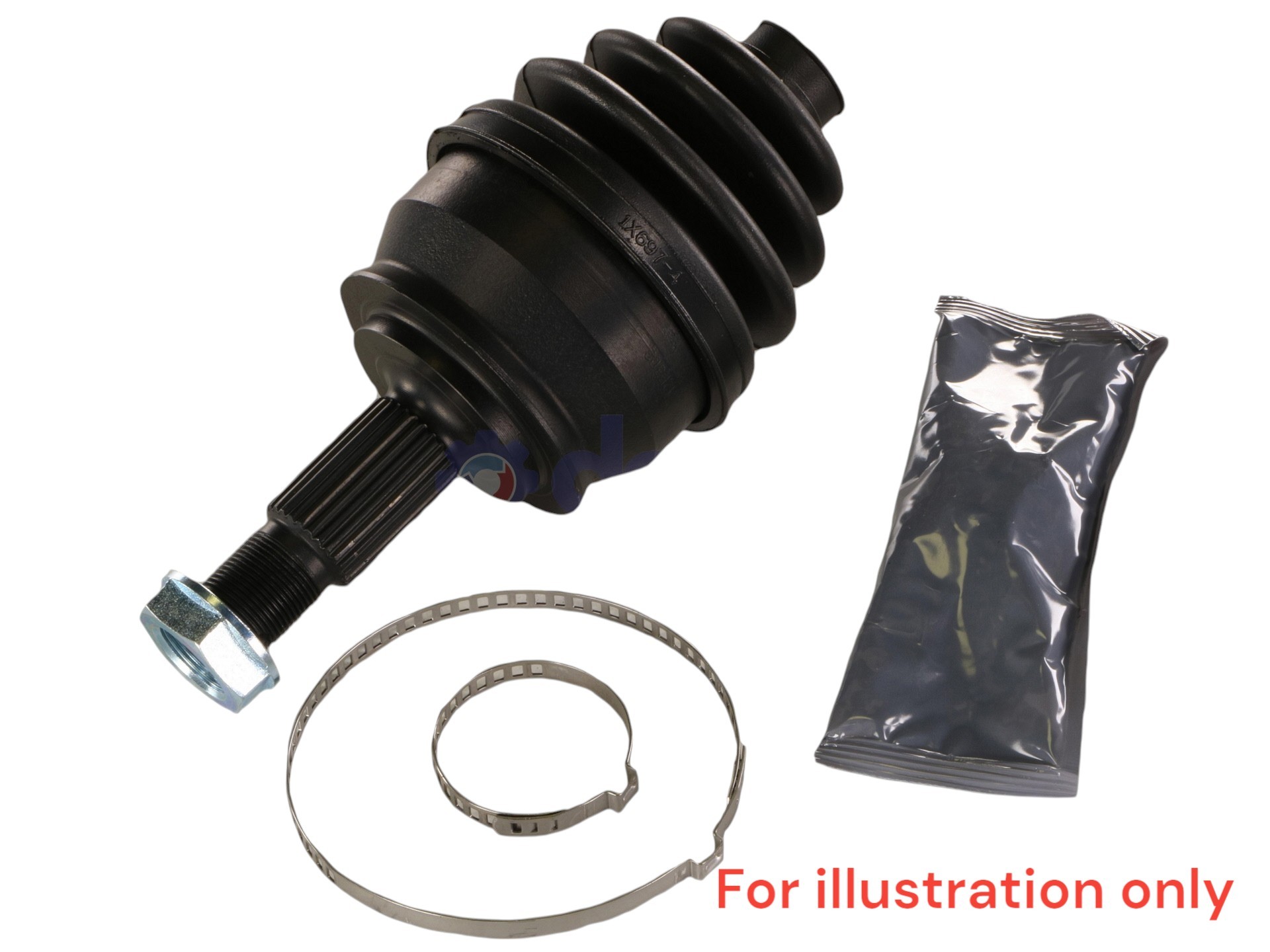

CV joint	COTE ROUE	JW101
CV joint	COTE BOITE	CBMW10T
Fixation	COTE ROUE	EC005
Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6192

Equivalence to manufacturer references

SEAT : 1S0407762G
SEAT : 1S0407762GX
SKODA : 1S0407762G
SKODA : 1S0407762GX
VOLKSWAGEN (SVW) : 1S0407762B
VOLKSWAGEN (SVW) : 1S0407762BX
VOLKSWAGEN (SVW) : 1S0407762D
VOLKSWAGEN (SVW) : 1S0407762DX
VOLKSWAGEN (SVW) : 1S0407762E
VOLKSWAGEN (SVW) : 1S0407762EX
VOLKSWAGEN (SVW) : 1S0407762G
VOLKSWAGEN (SVW) : 1S0407762GX
VOLKSWAGEN (SVW) : 1S0407762H
VOLKSWAGEN (SVW) : 1S0407762J
