Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

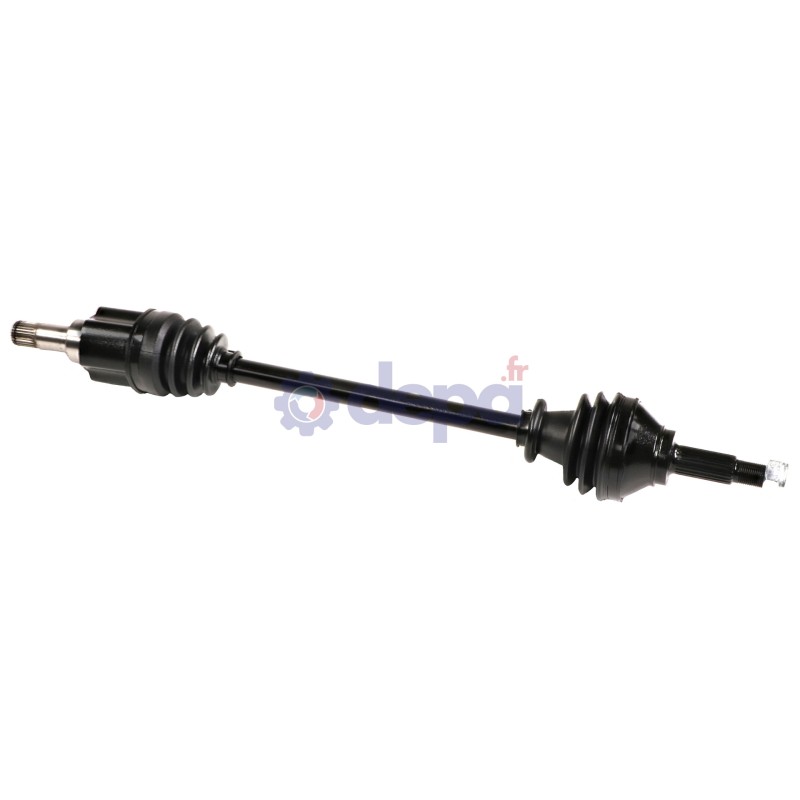

VOLKSWAGEN UP/SEAT MII/SKODA CITIGO LEFT-SIDE

Name: VOLKSWAGEN UP/SEAT MII/SKODA CITIGO LEFT-SIDE
Brand: Depa
SKU: 3771002
Price: 224.15 EUR
Availability: InStock

Ref : 3771002

Matching vehicles :

UP! - CITIGO - MII - UP! (121, 122, BL1, BL2, BL3, 123)

Family :TR

Height : 16.5 mm

Compressed length : 650 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 23 mm

Housing diameter : 60 mm

Length of the gearbox output without seal seat : 58 mm

Number of external splines : 28

Number of splines on inner race : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 24 mm

Diamètre du bol : 76 mm

Shoulder diameter : 46 mm

Nombre de cannelures extérieures : 22

Nombre de cannelures sur la noix : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 21 mm

Number of splines : 26

KITS ETANCHEITE TR neuf	COTE ROUE	5017
	COTE ROUE	5017
	COTE BOITE	6192
JOINT HOMO Echange	COTE ROUE	JW101
JOINT HOMO Echange	COTE BOITE	CBMW10T
FIXATION	COTE ROUE	EC005
FIXATION		EC005

Equivalence to manufacturer references

SEAT : 1S0407761F
SEAT : 1S0407761FX
SKODA : 1S0407761F
SKODA : 1S0407761FX
VOLKSWAGEN (SVW) : 1S0407761B
VOLKSWAGEN (SVW) : 1S0407761BX
VOLKSWAGEN (SVW) : 1S0407761D
VOLKSWAGEN (SVW) : 1S0407761DX
VOLKSWAGEN (SVW) : 1S0407761F
VOLKSWAGEN (SVW) : 1S0407761FX
VOLKSWAGEN (SVW) : 1S0407761G
VOLKSWAGEN (SVW) : 1S0407761H
