Search by vehicle

Category :

Transmission

Return

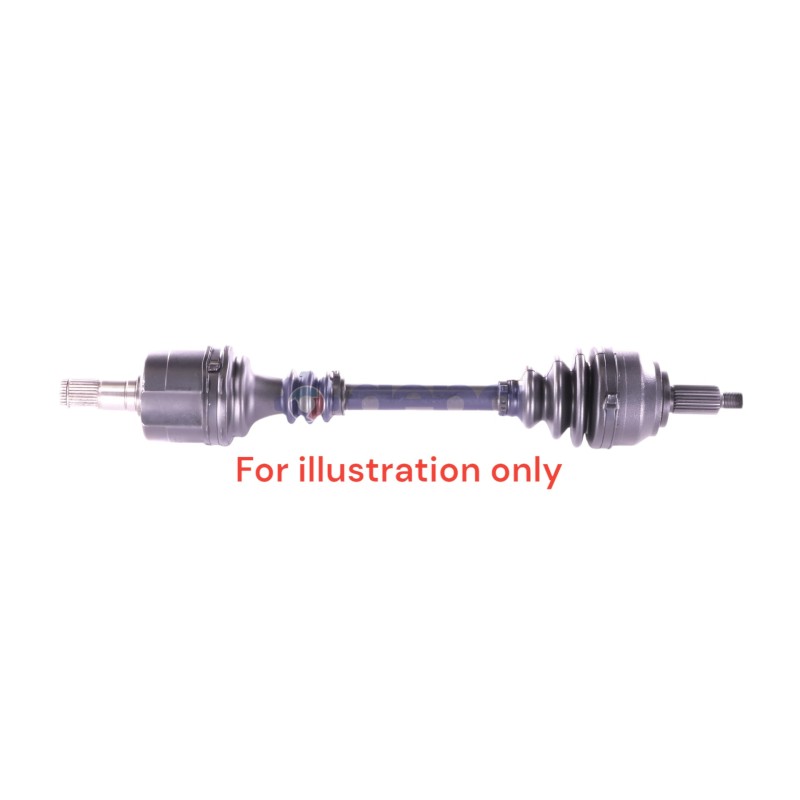

VW TRANSPORTER T6 AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: VW TRANSPORTER T6 AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3773962
Price: 325.06 EUR
Availability: InStock

Ref : 3773962

Matching vehicles :

TRANSPORTER 6

Family :TR

Height : 22 mm

Compressed length : 1030 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 30 mm

Housing diameter : 81 mm

Length of the shaft (including bearing unit) : 440 mm

Length of the gearbox output without seal seat : 71 mm

Number of external splines : 37

Number of mounting points : 2

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 31 mm

Diamètre du bol : 106 mm

Shoulder diameter : 63 mm

Nombre de cannelures extérieures : 38

Number of splines on inner race : 31

Observations : Threading length 36mm Ø20mm/Spline length on shoulder 55mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46.7 mm

Height : 23 mm

Number of splines : 27

Fixation	COTE ROUE	EC031
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6182
CV joint	COTE ROUE	JW41
CV joint	COTE BOITE	PALCBMW4060DT
Tripod joint	COTE BOITE	TRIAL11

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 7E0407454SX
VOLKSWAGEN (SVW) : 7E0407761D
