Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 7E0407276T
VOLKSWAGEN (SVW) : 7E0407454RX
VOLKSWAGEN (SVW) : 7LA407272L

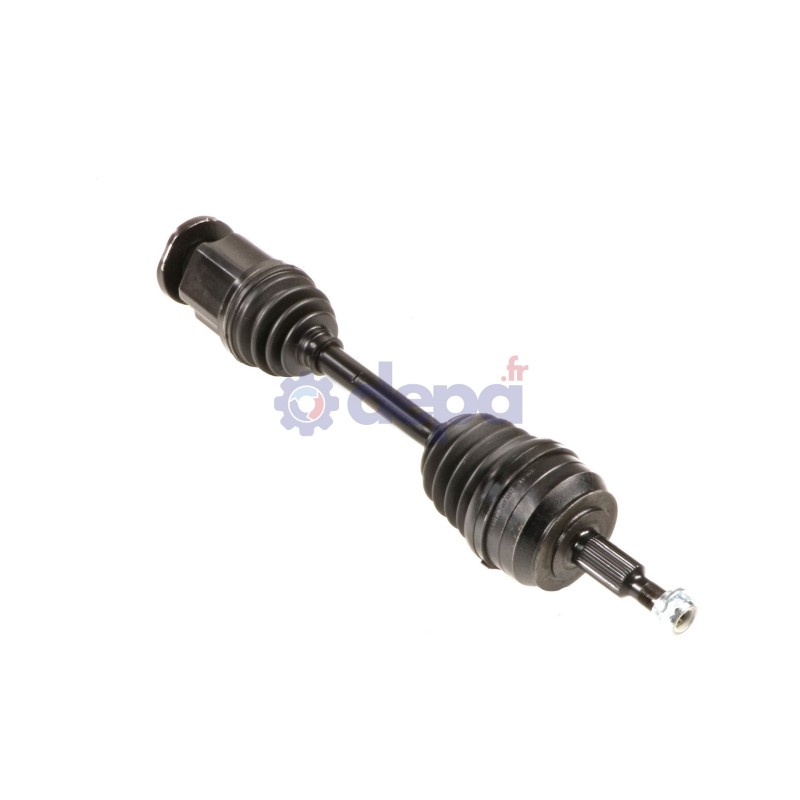

VW TRANSPORTER T6 4X4 AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: VW TRANSPORTER T6 4X4 AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3774160
Price: 325.06 EUR
Availability: OutOfStock

Ref : 3774160

Matching vehicles :

TRANSPORTER 6

Family :TR

Collapsed length : 618 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 22 mm

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 35 mm

Housing diameter : 85 mm

Number of internal splines : 26

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 31 mm

Diamètre du bol : 106 mm

Shoulder diameter : 63 mm

Number of external splines : 38

Number of splines on inner race : 31

Observations : Threading length 36mm Ø20mm/Spline length on shoulder 55mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 48.5 mm

Height : 24 mm

Number of splines : 29

CV joint	COTE ROUE	JW41
CV joint	COTE BOITE	CBFW4160T
Fixation	COTE ROUE	EC031
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6182
Tripod joint	COTE BOITE	TRIN97
