Catalog

Search by vehicle

Category :

Transmission

Return

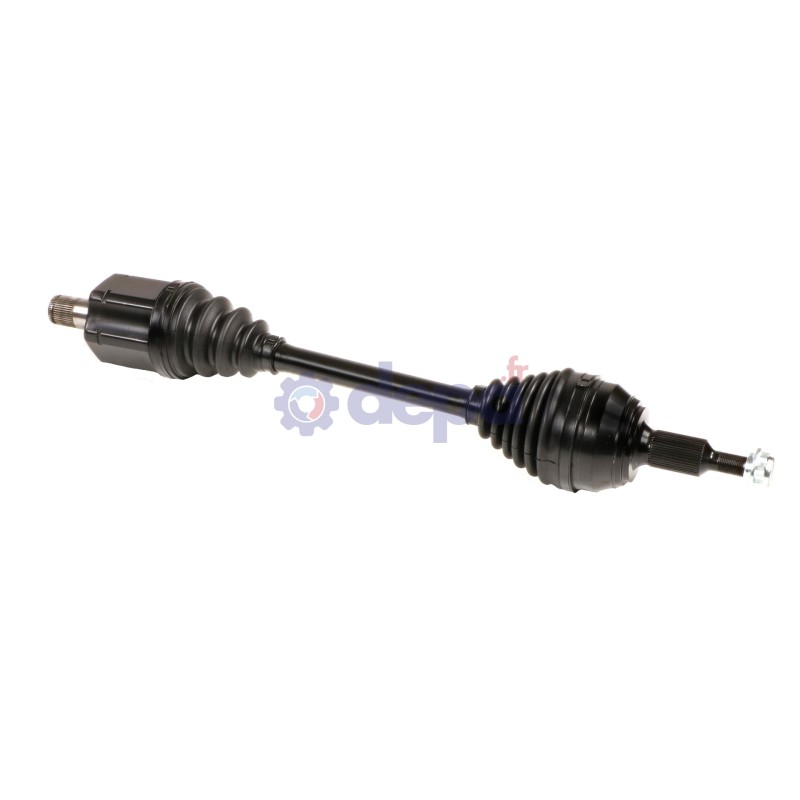

MAN TGE LEFT-SIDE

Name: MAN TGE LEFT-SIDE
Brand: Depa
SKU: 3820150
Price: 380.99 EUR
Availability: OutOfStock

Ref : 3820150

Matching vehicles :

TGE

Family :TR

Height : 22 mm

Observations : Interchangeable bolt or nut mounting

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 55 mm

Outer spline diameter : 34 mm

Housing diameter : 86 mm

Length of the gearbox output without seal seat : 56 mm

Number of external splines : 42

Number of splines on inner race : 29

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 32 mm

Diamètre du bol : 106 mm

Shoulder diameter : 72 mm

Nombre de cannelures extérieures : 44

Nombre de cannelures sur la noix : 31

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 50.5 mm

Height : 25 mm

Number of splines : 29

Fixation	COTE ROUE	EC031
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6182
CV joint	COTE ROUE	JW471
CV joint	COTE BOITE	CBMW47GT

Equivalence to manufacturer references

MAN : 65391066011
MAN : 65391066061
MAN : 65391066069
MAN : 65391069013
MAN : 65391069065
