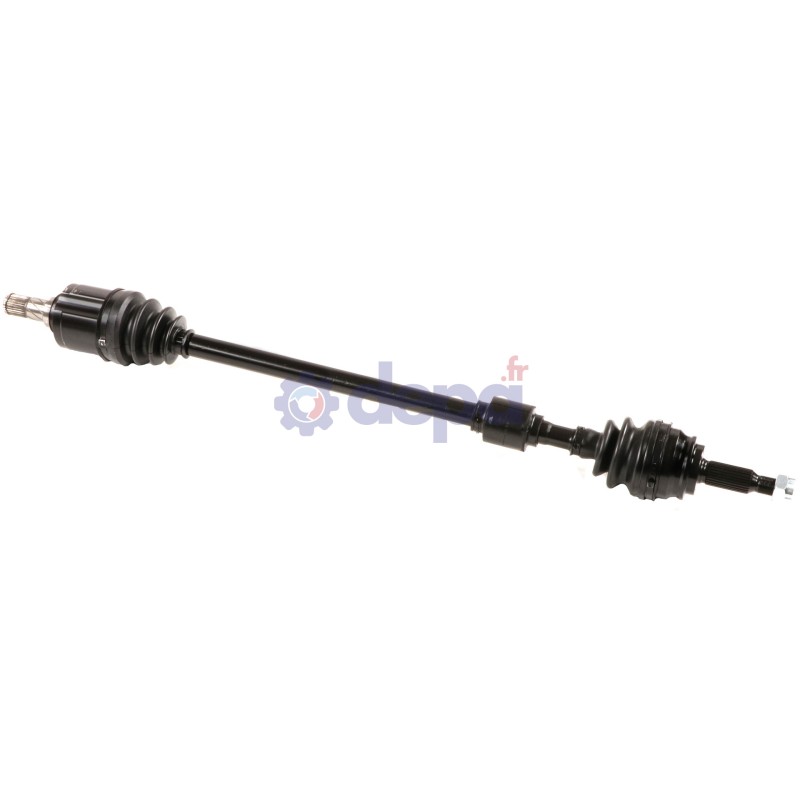

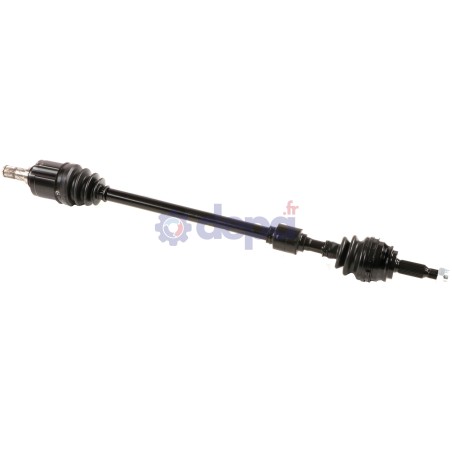

DODGE CALIBER AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: DODGE CALIBER AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3900360
Price: 238.48 EUR
Availability: OutOfStock

Ref : 3900360

Matching vehicles :

CALIBER

Family :TR

Height : 21 mm

Compressed length : 958 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Crown

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 85 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 27

Number of splines on inner race : 33

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29 mm

Diamètre du bol : 82 mm

Shoulder diameter : 59.5 mm

Nombre de cannelures extérieures : 28

Nombre de cannelures sur la noix : 33

Observations : Threading Ø 22mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76.5 mm

Diameter (little) : 25.5 mm

Beads thickness : 9 mm

Length : 89 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 44.4 mm

Height : 26.5 mm

Number of splines : 33

KITS ETANCHEITE TR neuf	COTE ROUE	5016
KITS ETANCHEITE TR neuf	COTE BOITE	6194
JOINT HOMO Echange	COTE ROUE	JDO0360
FIXATION	COTE ROUE	EC042

Equivalence to manufacturer references

DODGE : 00K05105772AG
