Catalog

Search by vehicle

Category :

Transmission

Return

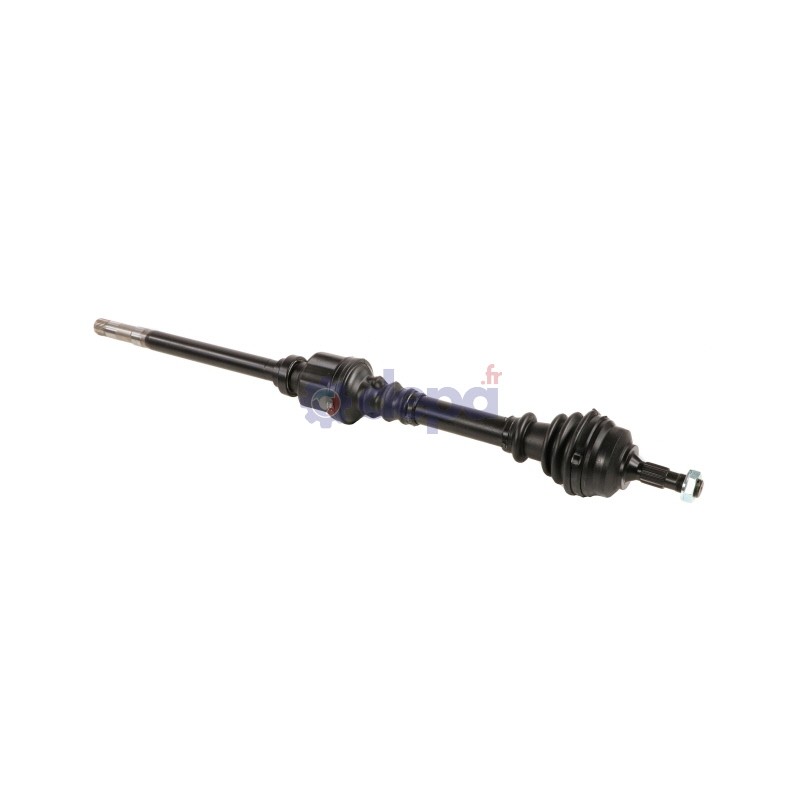

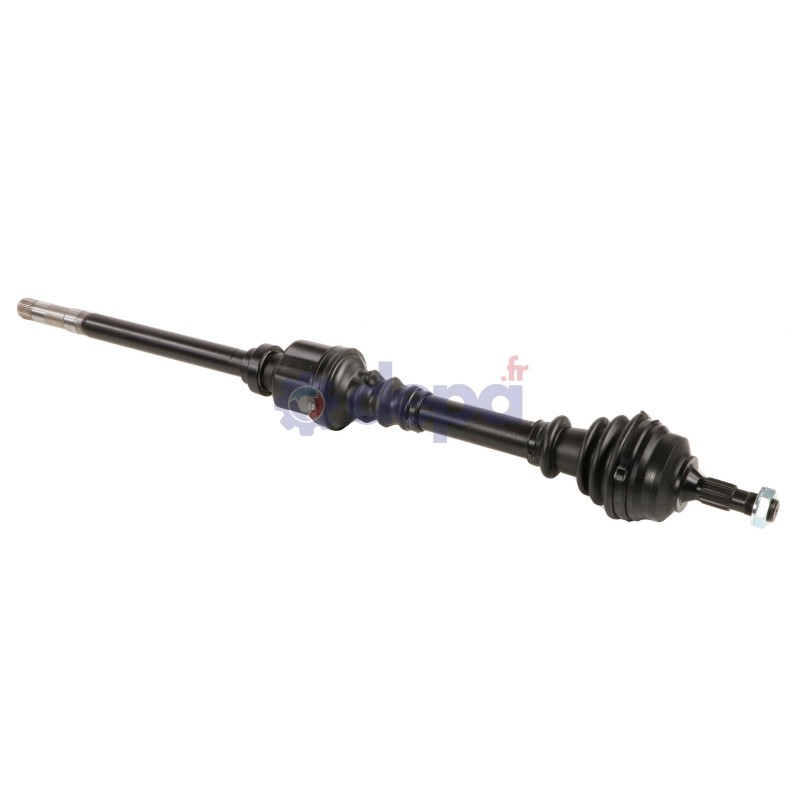

PEUGEOT 307/CITROEN C4 RIGHT-SIDE

Name: PEUGEOT 307/CITROEN C4 RIGHT-SIDE
Brand: Depa
SKU: 3082200
Price: 137.66 EUR
Availability: InStock

Ref : 3082200

Matching vehicles :

307 - C4 PICASSO - C4 GRAND PICASSO - C4

Family :TR

Height : 13.5 mm

Compressed length : 985 mm

Length of the shaft (including bearing unit) : 400 mm

Non-compressed length : 947 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 32 mm

Outer spline diameter : 28 mm

Housing diameter : 79 mm

Length of the shaft (including bearing unit) : 400 mm

Length of the gearbox output without seal seat : 86 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 100 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 39

Observations :

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 76 mm

Diameter (little) : 39 mm

Beads thickness : 14 mm

Length : 101 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 96 mm

Diamètre (petit) : 36 mm

Longueur : 96 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

Sealing kit	COTE ROUE	T3071
		T3070
		5102
	COTE BOITE	6112
Fixation	COTE ROUE	EC008
CV joint	COTE ROUE	JC54
CV joint	COTE BOITE	PALCBMC82DT
Bearing	COTE BOITE	RLT005
Tripod joint	COTE BOITE	TRIC44
Spring	COTE BOITE	REC44

Equivalence to manufacturer references

CITROËN : 3273CZ
CITROËN : 3273TJ
CITROËN : 3273TK
PEUGEOT : 3273CY
PEUGEOT : 3273CZ
PEUGEOT : 9644193580
PEUGEOT : 9645219180
