Equivalence to manufacturer references

CITROËN : 3272LZ
CITROËN : 3272NA

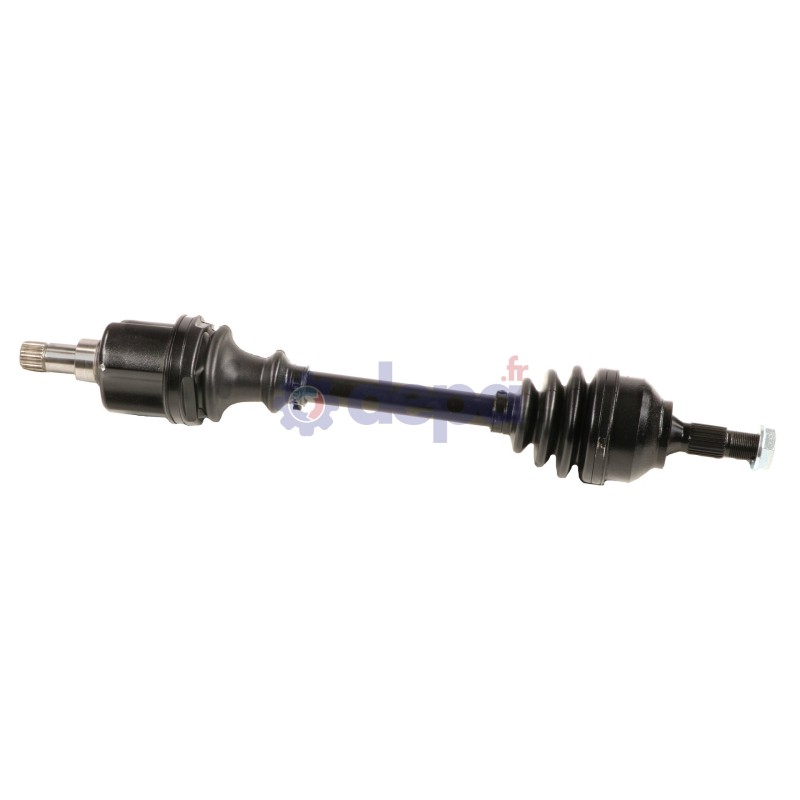

CITROEN C4 PICASSO LEFT-SIDE

Name: CITROEN C4 PICASSO LEFT-SIDE
Brand: Depa
SKU: 3082450
Price: 139.03 EUR
Availability: InStock

Ref : 3082450

Matching vehicles :

C4 GRAND PICASSO - C4 PICASSO

Family :TR

Non-collapsed length : 645 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 13.5 mm

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 27 mm

Housing diameter : 90 mm

Shoulder diameter : 59 mm

Number of external splines : 25

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 74 mm

Diameter (little) : 22 mm

Beads thickness : 16.5 mm

Length : 89 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 29 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3069
	COTE ROUE	5020
	COTE BOITE	6110
Fixation	COTE ROUE	EC008
CV joint	COTE ROUE	JP24
Tripod joint	COTE BOITE	TRIFO35
