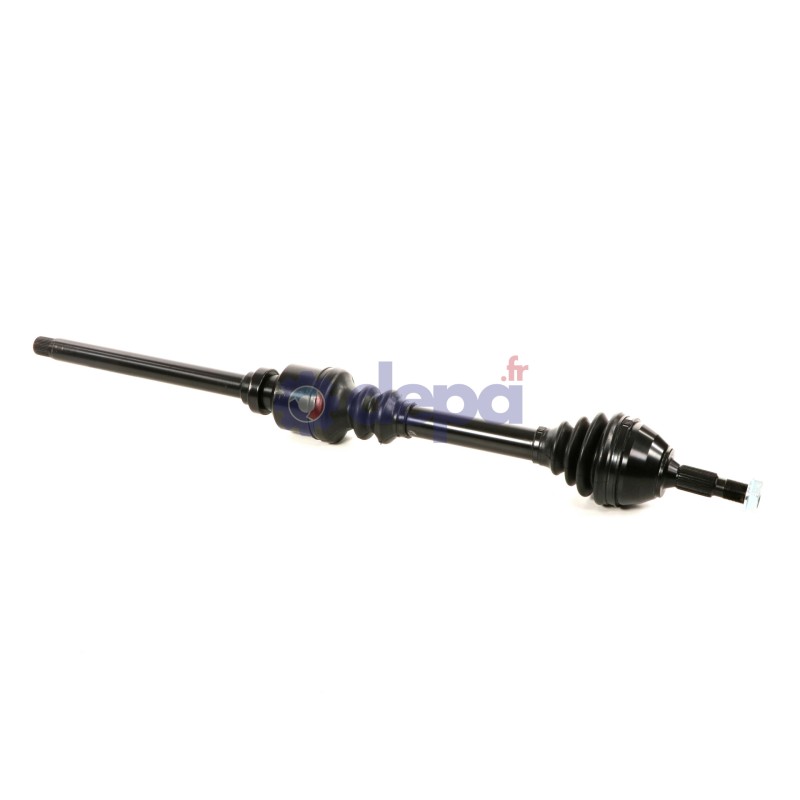

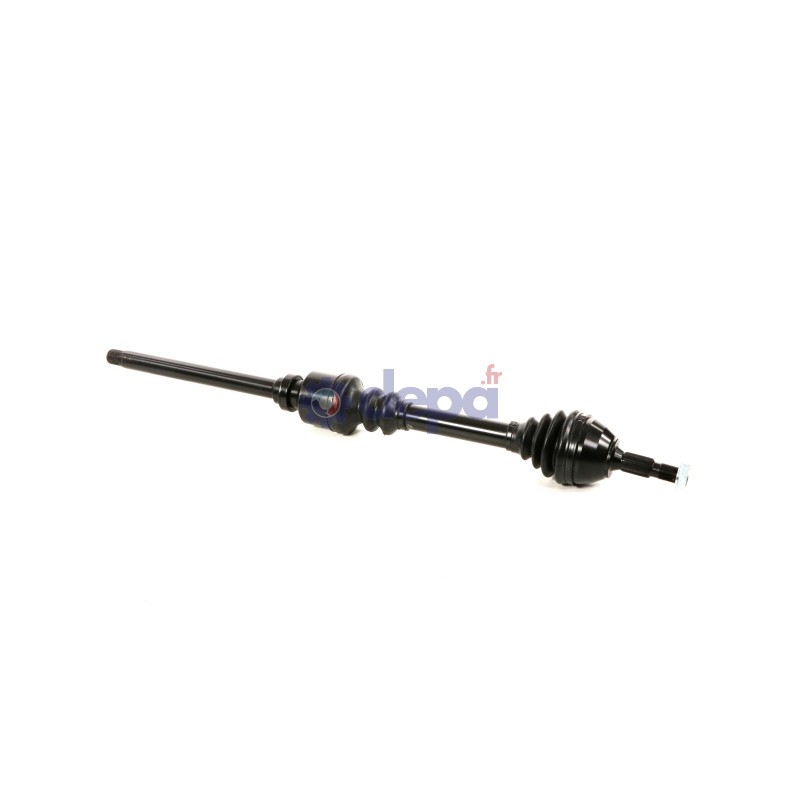

CITROEN C6 AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: CITROEN C6 AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3082640
Price: 182.04 EUR
Availability: OutOfStock

Ref : 3082640

Matching vehicles :

C6 - C5 II

Family :TR

Height : 13.5 mm

Length of the shaft (including bearing unit) : 365 mm

Non-compressed length : 990 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the shaft (including bearing unit) : 368 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 47 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 25.5 mm

Beads thickness : 15 mm

Length : 92 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3071
	COTE ROUE	5020
	COTE BOITE	6113
CV joint	COTE ROUE	JP27
CV joint	COTE BOITE	PALCBMP2760DT
Fixation	COTE ROUE	EC008
Bearing	COTE BOITE	RLT005
Tripod joint	COTE BOITE	TRIP27

Equivalence to manufacturer references

CITROËN : 3273WY
CITROËN : 3273WZ
CITROËN : 9685209680
