Catalog

Search by vehicle

Category :

Transmission

Return

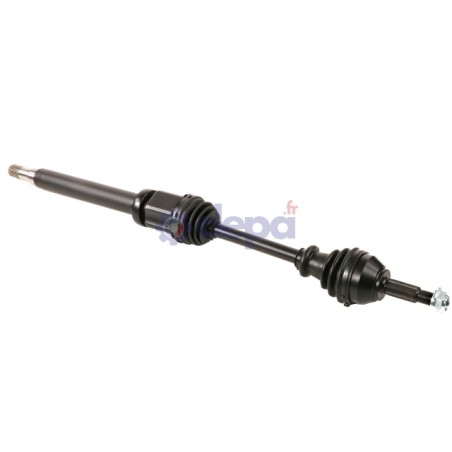

FORD TRANSIT CONNECT D

Name: FORD TRANSIT CONNECT D
Brand: Depa
SKU: 3258600
Price: 226.17 EUR
Availability: InStock

Ref : 3258600

Matching vehicles :

TOURNEO CONNECT I - TRANSIT CONNECT I

Family :TR

Compressed length : 960 mm

Length of the shaft (including bearing unit) : 390 mm

ABS on the vehicle : Yes

COTE BOITE

Outer spline diameter : 28.5 mm

Housing diameter : 71 mm

Nombre de cannelures extérieures : 26

Length of the shaft (including bearing unit) : 390 mm

Length of the gearbox output without seal seat : 68 mm

Seal seat diameter : 40 mm

COTE ROUE

Shoulder diameter : 53 mm

Type and position (snap ring/circlip) : Centered snap ring

Number of external splines : 25

Number of splines on inner race : 24

Observations : Lock nut with washer

Diamètre du bol : 85 mm

Diamètre des cannelures extérieures : 27 mm

CV joint	COTE ROUE	JFO86
CV joint	COTE BOITE	PALCBMFO86DT
FIXATION	COTE ROUE	EC019
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6084
ROULEMENT	COTE BOITE	RLT033
TRIAXE	COTE BOITE	TRIFO86

Equivalence to manufacturer references

FORD : 1804604
FORD : 1328363
FORD : 4994092
FORD : 1754379
FORD : 1383754
FORD : 1451464
FORD : 1477381
FORD : 1501262
FORD : 2T143B436CB
FORD : 2T143B436CC
FORD : 2T143B436CD
FORD : 2T143B436CE
FORD : 2T143B436CF
FORD : 4511905
FORD : 9T163B436AA
FORD : RM2T143B436C1F
FORD : RM9T163B436A1A
FORD : 2T143B436CA
FORD USA : 9T1Z3B436A
