Category :

Transmission

Return

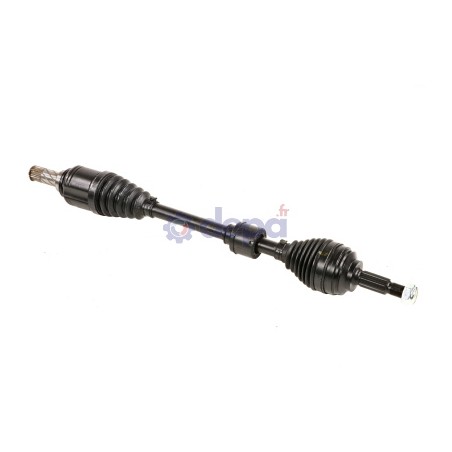

DACIA LOGAN II / SANDERO II G

Ref : 3603350

Matching vehicles :

SANDERO II - LOGAN II - LOGAN II MCV

Family :TR

ABS on the vehicle  : Yes

Non-compressed length  : 690 mm

COTE BOITE

Number of external splines  : 26

Length of the gearbox output without seal seat  : 64 mm

Diamètre des cannelures extérieures  : 26.5 mm

Seal seat diameter  : 40 mm

Diamètre du bol  : 67 mm

COTE ROUE

Outer spline diameter  : 25.1 mm

Type and position (snap ring/circlip)  : Internal snap ring

Number of splines on inner race  : 28

Observations  : Threading Ø20mm

Housing diameter  : 75.4 mm

Nombre de cannelures extérieures  : 23

Shoulder diameter  : 49 mm

CV joint COTE ROUE JR07 DACIA / RENAULT
COTE BOITE CBMR07GT
Sealing kit COTE ROUE 5002 FIAT
COTE BOITE 6048 COTE BOITE FIAT
FIXATION COTE ROUE EC051 ECROU 20 X 150

Equivalence to manufacturer references

  • DACIA : 391012636R
