Catalog

Search by vehicle

Category :

Transmission

Return

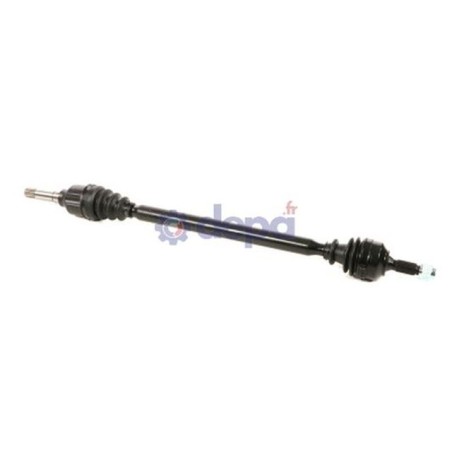

CITROEN C3 II/DS3 RIGHT-SIDE

Name: CITROEN C3 II/DS3 RIGHT-SIDE
Brand: Depa
SKU: 3068800
Price: 190.35 EUR
Availability: InStock

Ref : 3068800

Matching vehicles :

C3 II - DS3

Family :TR

Height : 28.5 mm

Non-compressed length : 900 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : To strike

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 24 mm

Housing diameter : 63 mm

Length of the gearbox output without seal seat : 80 mm

Number of external splines : 22

Number of splines on inner race : 21

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 23 mm

Diamètre du bol : 76 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 21

Nombre de cannelures sur la noix : 29

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33.2 mm

Height : 23 mm

Number of splines : 29

Sealing kit	COTE ROUE	T3110
	COTE ROUE	5002
	COTE BOITE	6107
	COTE BOITE	6192
CV joint	COTE ROUE	JC88
	COTE ROUE	JC3820
	COTE BOITE	CBMC38DT
	COTE BOITE	CBMC381DT
Fixation	COTE ROUE	EC002
Fixation		EC006
Tripod joint	COTE BOITE	TRIC38

Equivalence to manufacturer references

CITROËN : 3273WG
CITROËN : 3273WH
CITROËN : 3273WR
CITROËN : 3273WS
